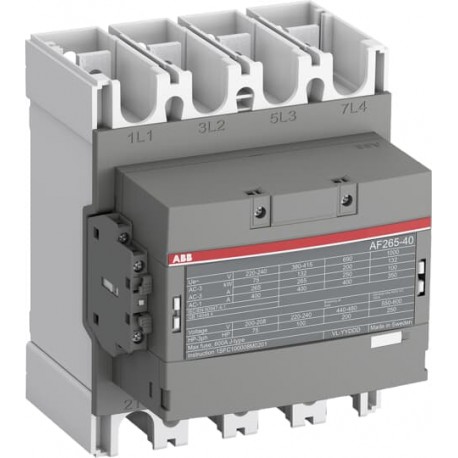

1SFL547102R1111 ABB AF265-40-11-11 Contactor
1SFL547102R1111
547102
ABB
1 Pcs.
Automation > Power contactor, AC switching
AF contactors 100A to 370A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB contactor is an essential electromechanical switching device utilized in heavy manufacturing and power distribution to govern large electrical loads and motors. It ensures safe and repeatable circuit operations within automated industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- EPLAN Data: 9AAC175202_EPLAN
- Data Sheet, Technical Information: 1SBC100214C0202
- Data Sheet, Technical Information (Part 2): 1SAC200017M0002
- Instructions and Manuals: 1SFC100008M0201
- CAD Dimensional Drawing: 2CDC001079B0201
- Product Net Width: 184.4 mm
- Product Net Depth / Length: 180 mm
- Product Net Height: 225 mm
- Product Net Weight: 5.7 kg
- Dimension Diagram: 1SFB535001G1123
- Number of Main Contacts NO: 4
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 1
- Number of Auxiliary Contacts NC: 1
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| EPLAN Data | 9AAC175202_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Data Sheet, Technical Information (Part 2) | 1SAC200017M0002 |
| Instructions and Manuals | 1SFC100008M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 184.4 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Height | 225 mm |
| Product Net Weight | 5.7 kg |
| Dimension Diagram | 1SFB535001G1123 |
| Technical | |
| Number of Main Contacts NO | 4 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 4P |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Main Circuit 50 / 60 Hz | |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 400 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 40 °C 350 A |
| (1000 V) 60 °C 300 A | |
| (1000 V) 70 °C 240 A | |
| (690 V) 40 °C 400 A | |
| (690 V) 60 °C 350 A | |
| (690 V) 70 °C 290 A | |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 265 A |
| (440 V) 55 °C 265 A | |
| (500 V) 55 °C 250 A | |
| (690 V) 55 °C 250 A | |
| (380 / 400 V) 55 °C 265 A | |
| (220 / 230 / 240 V) 55 °C 265 A | |
| Rated Operational Power AC-3 (Pe) | (415 V) 132 kW |
| (440 V) 160 kW | |
| (380 / 400 V) 132 kW | |
| (220 / 230 / 240 V) 75 kW | |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Breaking Capacity AC-3e | 8.5 x Ie AC-3e |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Rated Making Capacity AC-3e | 12 x Ie AC-3e |
| Short-Circuit Protective Devices | gG Type Fuses 630 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 400 A |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1224 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 2650 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2120 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 865 A | |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3800 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
| acc. to UL/CSA 600 V | |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| (AC-3) 300 cycles per hour | |
| Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 24 ... 60 V |
| 60 Hz 24 ... 60 V | |
| DC Operation 20 ... 60 V | |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 8.5 V·A |
| Holding at Max. Rated Control Circuit Voltage 60 Hz 8.5 V·A | |
| Holding at Max. Rated Control Circuit Voltage DC 3 V·A | |
| Holding at Max. Rated Control Circuit Voltage DC 3 W | |
| Pull-in at Max. Rated Control Circuit Voltage 50 Hz 475 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage 60 Hz 475 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage DC 400 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage DC 400 W | |
| Power Loss | at Rated Operating Conditions per Pole 32 W |
| Operate Time | Between Coil De-energization and NO Contact Opening 45 ... 80 ms |
| Between Coil Energization and NO Contact Closing 30 ... 60 ms | |
| Connecting Capacity Main Circuit | Flexible 2 x 70 ... 185 mm² |
| Rigid Al-Cable 1 x 185 ... 240 mm² | |
| Rigid Cu-Cable 2 x 70 ... 185 mm² | |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | |
| Flexible 2x0.75 ... 2.5 mm² | |
| Solid 2 x 1 ... 4 mm² | |
| Stranded 2 x 1 .... 4 mm² | |
| Connecting Capacity | Flexible 2 x 70 ... 185 mm² |
| Rigid Cu-Cable 2 x 70 ... 185 mm² | |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 |
| acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | |
| acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 | |
| Tightening Torque | Cable Lug 9 N·m |
| Main Circuit 22 ... 43 N·m | |
| Terminal Type | Main Circuit: Bars |
| Product Name | Block Contactor |
| Technical UL/CSA | |
| NEMA Size | 5 |
| Horsepower Rating NEMA | (200 V AC) Three Phase 75 Hp |
| (230 V AC) Three Phase 100 Hp | |
| (460 V AC) Three Phase 200 Hp | |
| (575 V AC) Three Phase 200 Hp | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| General Use Rating UL/CSA | (1000 V AC) 350 A |
| Horsepower Rating UL/CSA | (200 ... 208 V AC) Three Phase 40 Hp |
| (200 V AC) Three Phase 75 hp | |
| (208 V AC) Three Phase 75 hp | |
| (220 ... 240 V AC) Three Phase 40 Hp | |
| (220 ... 240 V AC) Three Phase 100 hp | |
| (440 ... 480 V AC) Three Phase 100 Hp | |
| (440 ... 480 V AC) Three Phase 200 hp | |
| (550 ... 600 V AC) Three Phase 125 Hp | |
| (550 ... 600 V AC) Three Phase 250 hp | |
| Environmental | |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C |
| Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C | |
| Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | |
| Close to Contactor for Storage -40 ... 70 °C | |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility |
| End Of Life Disassembling Instructions | 1SFC100112M0002 |
| Environmental Product Declaration - EPD | 1SFC100104D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 76.3 % |
| Sustainable Material Content in Product (wt. %) | Recycled Metal - 33 % |
| Certificates and Declarations | |
| A2L Certificate – UL | 9AKK108468A6695 |
| ABS Certificate | 14-LD1092198-PDA |
| BV Certificate | BV_36353_A0BV |
| CB Certificate | SEMKO_SE-73326 |
| CQC Certificate | CQC2014010304676670 |
| Declaration of Conformity - CCC | 2020980304001305 |
| Declaration of Conformity - CE | 2CMT2015-005439 |
| Declaration of Conformity - UKCA | 2CMT2020-006118 |
| EAC Certificate | 9AKK107046A8618 |
| KC Certificate | 9AKK107046A9908 |
| LR Certificate | LR_14_70011(E1) |
| PRS Certificate | TE_2092_880423_16 |
| RINA Certificate | ELE060313XG_002 |
| RMRS Certificate | 9AKK107045A6978 |
| UL Certificate | 20140910-E73397 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 212 mm |
| Package Level 1 Depth / Length | 262 mm |
| Package Level 1 Height | 212 mm |
| Package Level 1 Gross Weight | 6.4 kg |
| Package Level 1 EAN | 7320500505502 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4758 >> Iec Contactors |
| E-Number (Finland) | 3707220 |
| E-Number (Norway) | 4117786 |
| E-Number (Sweden) | 3210338 |
