View larger
Images are for illustrative purposes only. Please refer to data sheet for details

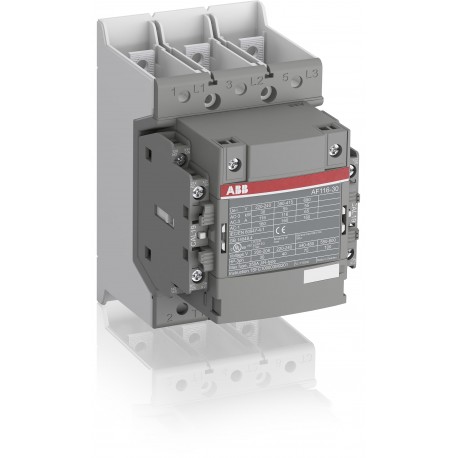

1SFL427002R1122 ABB AF116-30-22B-11 Contactor
1SFL427002R1122
427002
ABB
1 Pcs.
AF116-30-22B-11 Contactor
AF116-30-22B-11 CONT. 3P BOB 24-60VAC-DC
Automation > Power contactor, AC switching
AF contactors 100A to 370A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| EPLAN Data | 9AAC174538_EPLAN |
| Data Sheet, Technical Information | 1SBC100214C0202 |
| Data Sheet, Technical Information (Part 2) | 1SAC200017M0002 |
| Instructions and Manuals | 1SFC100003M0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimensions | |
| Product Net Width | 90 mm |
| Product Net Depth / Length | 126 mm |
| Product Net Height | 150 mm |
| Product Net Weight | 1.3 kg |
| Dimension Diagram | 1SFB535001G1051 |
| Technical | |
| Number of Main Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Auxiliary Contacts NC | 2 |
| Number of Poles | 3P |
| Rated Operational Voltage | Main Circuit 690 V |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 160 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 160 A |
| (690 V) 60 °C 145 A | |
| (690 V) 70 °C 130 A | |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 116 A |
| (440 V) 55 °C 116 A | |
| (500 V) 55 °C 110 A | |
| (690 V) 55 °C 65 A | |
| (380 / 400 V) 55 °C 116 A | |
| (220 / 230 / 240 V) 55 °C 116 A | |
| Rated Operational Current AC-3e (Ie) | (415 V) 60 °C 116 A |
| (440 V) 60 °C 116 A | |
| (500 V) 60 °C 110 A | |
| (690 V) 60 °C 65 A | |
| (380 / 400 V) 60 °C 116 A | |
| (220 / 230 / 240 V) 60 °C 116 A | |
| Rated Operational Current DC-1 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A |
| (220 V) 3 Poles in Series, 40 °C 145 A | |
| Rated Operational Current DC-3 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A |
| (220 V) 3 Poles in Series, 40 °C 145 A | |
| Rated Operational Current DC-5 (Ie) | (110 V) 2 Poles in Series, 40 °C 145 A |
| (220 V) 3 Poles in Series, 40 °C 145 A | |
| Rated Operational Power AC-3 (Pe) | (415 V) 55 kW |
| (440 V) 75 kW | |
| (500 V) 75 kW | |
| (690 V) 55 kW | |
| (380 / 400 V) 55 kW | |
| (220 / 230 / 240 V) 30 kW | |
| Rated Operational Power AC-3e (Pe) | (415 V) 55 kW |
| (440 V) 75 kW | |
| (500 V) 75 kW | |
| (690 V) 55 kW | |
| (380 / 400 V) 55 kW | |
| (220 / 230 / 240 V) 30 kW | |
| Rated Breaking Capacity AC-3 | 8 x Ie AC-3 |
| Rated Breaking Capacity AC-3e | 8.5 x Ie AC-3e |
| Rated Making Capacity AC-3 | 10 x Ie AC-3 |
| Rated Making Capacity AC-3e | 12 x Ie AC-3e |
| Short-Circuit Protective Devices | gG Type Fuses 250 A |
| Rated Short-time Withstand Current Low Voltage (Icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 160 A |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 536 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 1160 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 928 A | |
| at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 379 A | |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 2000 A |
| cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1000 A | |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
| acc. to UL/CSA 600 V | |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Maximum Electrical Switching Frequency | (AC-1) 300 cycles per hour |
| (AC-2 / AC-4) 150 cycles per hour | |
| (AC-3) 300 cycles per hour | |
| Mechanical Durability | 5 million |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Coil Operating Limits | (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C) |
| Rated Control Circuit Voltage (Uc) | 50 Hz 24 ... 60 V |
| 60 Hz 24 ... 60 V | |
| DC Operation 20 ... 60 V | |
| Coil Consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 5.5 V·A |
| Holding at Max. Rated Control Circuit Voltage 60 Hz 5.5 V·A | |
| Holding at Max. Rated Control Circuit Voltage DC 2.5 V·A | |
| Holding at Max. Rated Control Circuit Voltage DC 2.5 W | |
| Pull-in at Max. Rated Control Circuit Voltage 50 Hz 225 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage 60 Hz 225 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage DC 210 V·A | |
| Pull-in at Max. Rated Control Circuit Voltage DC 210 W | |
| Power Loss | at Rated Operating Conditions per Pole 6 W |
| Operate Time | Between Coil De-energization and NO Contact Opening 37 ... 47 ms |
| Between Coil Energization and NO Contact Closing 25 ... 55 ms | |
| Connecting Capacity Main Circuit | Flexible 2 x 10 ... 70 mm² |
| Rigid Cu-Cable 2 x 10 ... 95 mm² | |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | |
| Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | |
| Flexible 2x0.75 ... 2.5 mm² | |
| Solid 1 x 1 ... 4 mm² | |
| Solid 2 x 1 ... 4 mm² | |
| Stranded 1 x 1 .... 4 mm² | |
| Stranded 2 x 1 .... 4 mm² | |
| Connecting Capacity | Flexible 1 x 10 ... 70 mm² |
| Flexible 2 x 10 ... 70 mm² | |
| Rigid Cu-Cable 2 x 10 ... 95 mm² | |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 |
| acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | |
| acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00 | |
| Tightening Torque | Cable Lug 9 N·m |
| Main Circuit 8 N·m | |
| Terminal Type | Main Circuit: Bars |
| Product Name | Block Contactor |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V |
| General Use Rating UL/CSA | (600 V AC) 160 A |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 30 hp |
| (208 V AC) Three Phase 30 hp | |
| (220 ... 240 V AC) Three Phase 20 Hp | |
| (220 ... 240 V AC) Three Phase 40 hp | |
| (440 ... 480 V AC) Three Phase 40 Hp | |
| (440 ... 480 V AC) Three Phase 75 hp | |
| (550 ... 600 V AC) Three Phase 50 Hp | |
| (550 ... 600 V AC) Three Phase 100 hp | |
| Full Load Amps Motor Use | (440 ... 480 V AC) Three Phase 96 A |
| (550 ... 600 V AC) Three Phase 99 A | |
| Environmental | |
| Ambient Air Temperature | Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C |
| Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | |
| Close to Contactor for Storage -40 ... 70 °C | |
| Maximum Operating Altitude Permissible | Without Derating 3000 m |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 2CMT2021-006277 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility |
| End Of Life Disassembling Instructions | 1SFC100112M0001 |
| Environmental Product Declaration - EPD | 1SFC100092D0201 |
| 2TFP200059A1001 | |
| Improved Energy Efficiency for Customers | Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 87.8 % |
| Sustainable Material Content in Product (wt. %) | Recycled Metal - 37 % |
| Certificates and Declarations | |
| A2L Certificate – UL | 9AKK108468A6693 |
| ABS Certificate | 14-LD1092198-PDA |
| 14-LD1092198-1-PDA-DUP | |
| BV Certificate | BV_36353_A0BV |
| CB Certificate | SEMKO_SE-70479M1 |
| CCS Certificate | GB14T00030 |
| CQC Certificate | CQC2013010304604055 |
| Declaration of Conformity - CCC | 2020980304001304 |
| Declaration of Conformity - CE | 2CMT2015-005439 |
| Declaration of Conformity - UKCA | 2CMT2020-006118 |
| DNV Certificate | DNV_E-14043 |
| EAC Certificate | 9AKK107046A8618 |
| LR Certificate | 16-20064 |
| PRS Certificate | TE_2092_880423_16 |
| RINA Certificate | ELE060313XG_002 |
| RMRS Certificate | 9AKK107045A6978 |
| UL Certificate | 20120925-E36588 |
| UL Listing Card | UL_E36588 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 207 mm |
| Package Level 1 Depth / Length | 216 mm |
| Package Level 1 Height | 150 mm |
| Package Level 1 Gross Weight | 1.5 kg |
| Package Level 1 EAN | 7320500476895 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 7 | EC000066 - Power contactor, AC switching |
| ETIM 8 | EC000066 - Power contactor, AC switching |
| ETIM 9 | EC000066 - Power contactor, AC switching |
| eClass | V11.0 : 27371003 |
| UNSPSC | 39121529 |
| IDEA Granular Category Code (IGCC) | 4758 >> Iec Contactors |
| E-Number (Finland) | 3706175 |
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage DC (EF003980) | 20 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 160 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 116 A |
| Rated operation power at AC-3, 400 V (EF001364) | 55 kW |
| Rated operation power NEMA (EF011960) | 29.8280 kW |
| Modular version (EF001126) | No |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
