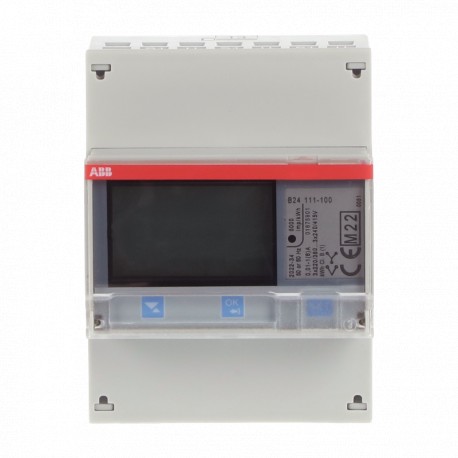

2CMA100177R1000 ABB Active energy Cl. B
2CMA100177R1000
100177
ABB
1 Pcs.
Automation > Kilowatt-hour meter
EQ-METERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Active energy Cl. B is an electricity meter manufactured by Abb under part number 2CMA100177R1000, built to measure electrical energy consumption in commercial and industrial power distribution networks. Submetering devices of this type help facilities monitor usage patterns, allocate energy costs, and maintain compliance with efficiency standards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 66.08 %
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- Improved Energy Efficiency for Customers: Process Efficiency - Product improves/optimizes process
- End Of Life Disassembling Instructions: 9AKK108470A1374
- Environmental Product Declaration - EPD: 9AKK108467A4138
- Function: Electricity meter
- Sub-Function: Steel
- Current Rating: 1 A
- Communication Interface: IR port
- Accuracy: Active Energy Class B MID (±1%)
- Measuring Instrument Conformity: Measurement Instrument Directive (MID)
- Meter Tariff Rating: One-Tariff
- Pulse Output Rate: 1-999999
- Number of Poles: 4P
- Number of Phases: 3-phase
- Number of Counter Positions: 7
More info
▲| ABB EcoSolutions | |
|---|---|
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 66.08 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Process Efficiency - Product contribute to reducing customer operations environmental footprint | |
| Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset | |
| Extended Product Lifetime | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| End Of Life Disassembling Instructions | 9AKK108470A1374 |
| Environmental Product Declaration - EPD | 9AKK108467A4138 |
| Technical | |
| Function | Electricity meter |
| Sub-Function | Steel |
| Current Rating | 1 A |
| Communication Interface | IR port |
| Accuracy | Active Energy Class B MID (±1%) |
| Measuring Instrument Conformity | Measurement Instrument Directive (MID) |
| Meter Tariff Rating | One-Tariff |
| Pulse Output Rate | 1-999999 |
| Number of Poles | 4P |
| Number of Phases | 3-phase |
| Number of Counter Positions | 7 |
| Number of Digital In/Outputs | 1 Digital Output |
| Meter Type | Transformer connected |
| Pulse Output Type | Electrical |
| Type of Indicator | Digital |
| Additional Information | CT (1A, 5A) |
| Connecting Capacity Main Circuit | 0.5 ... 10 mm² |
| Electrical | |
| Rated Voltage (Ur) | 3x220-240 V |
| Voltage Range | 3x176…276 V |
| Rated Current (In) | 1 A |
| Maximum 6 A | |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Consumption (@Pcons) | 0.721 W |
| Design | |
| Enclosure Material | Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover. |
| Material Compliance | |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 70 °C |
| Degree of Protection | IP20 |
| Environmental Information | 2CMC485003D0001 |
| Dimensions | |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm |
| Product Net Height | 26.5 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 250 g |
| Size | 96X70X65 |
| Dimension Diagram | 2CMC485003M0201 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.32 kg |
| E-Number (Finland) | 6625040 |
| E-Number (Norway) | 8204074 |
| E-Number (Sweden) | 0900044 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CMC485002D0001 |
| EU Data Act Compliance Declaration | 9AKK108471A5047 |
| Installation | |
| Instructions and Manuals | 2CMC485019M0201 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CMC485003M0201 |
| External Classifications and Standards | |
| ETIM 9 | EC001506 - Kilowatt-hour meter |
| ETIM 10 | EC001506 - Electricity meter |
| UNSPSC | 41113667 |
| eClass | V11.0 : 27142316 |
| IDEA Granular Category Code (IGCC) | 3300 >> Kilowatt-hour meter |
| Object Classification Code | P |
| Standards | EN 50470-1 |
