> ABB > Other modular devices > EQ-METERS > 100149

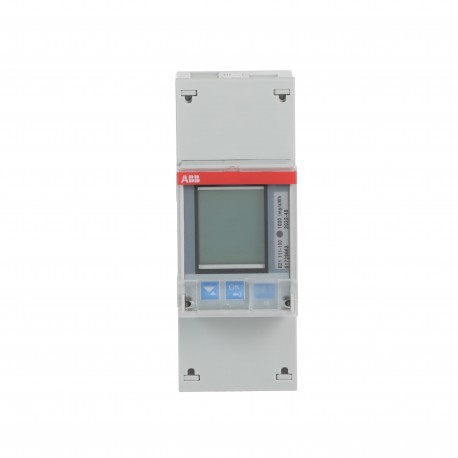

ABB 2CMA100149R1000 2CMA100149R1000 ABB Active energy Cl. B View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2CMA100149R1000 ABB Active energy Cl. B

2CMA100149R1000

100149

ABB

1 Pcs.

Active energy Cl. B Ener counter. B21 111-100 Steel 'Steel' energy meter, IR port, 1-phase, 5 A

Automation > Kilowatt-hour meter
EQ-METERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Electricity meter, 1 phase, Active energy Cl. 1 & B, Approved according to: IEC 62052-11, IEC 62053-21, EN 50470-1, EN 50470-3

Ordering

  • EAN:
    7392696001496
  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    90283011

Dimensions

  • Product Net Width:
    35mm
  • Product Net Height:
    97mm
  • Product Net Depth:
    65mm
  • Product Net Weight:
    0.14kg

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    70 mm
  • Package Level 1 Height:
    50 mm
  • Package Level 1 Length:
    102 mm
  • Package Level 1 Gross Weight:
    0.19 kg
  • Package Level 1 EAN:
    7392696001496

Environmental

  • RoHS Status:
    Following EU Directive 2002/95/EC August 18, 2005 and amendment

Additional Information

  • Accuracy:
    Active energy Cl. B
  • Communication Interface:
    Pulse output
  • Connecting Capacity-Main Circuit:
    1 ... 25 mm²
  • Degree of Protection:
    IP20
  • Enclosure Material:
    Plastic
  • Frequency (f):
    60 Hz
  • Function:
    Electricity meter
  • IIT Publishing Status:
    Level 0 - Information enabled
  • Meter Type:
    Direct connected
  • Mounting Type:
    DIN rail
  • Number of Phases:
    1
  • Product Main Type:
    B21
  • Product Name:
    Electricity Meter
  • Rated Current (In):
    65 A
  • Rated Voltage (Ur):
    220 ... 240 V
  • RoHS Date:
    2012-36
  • Standards:
    EN 50470-1
  • Sub-Function:
    Steel

Certificates and Declarations (Document Number)

Classifications

  • E-nummer:
    0900029
  • ETIM 4:
    EC001506 - Electronic kilowatt-hour meter
  • ETIM 5:
    EC001506 - Kilowatt-hour meter
  • Object Classification Code:
    P

ETIM for 2CMA100149R1000 Meters (EC001506)
Feature Name Feature Value
Type of meter (EF005441) Electronic
Nominal current (In) (EF008873) 65 A
Max. current (Imax) (EF000877) 65 A
Accuracy class (EF008842) B
Pole type (EF008843) Single phase
Tariff type (EF007550) One-tariff
Measurement type load profile (EF008844) No
Escapement mechanism (EF008835) Yes
Calibrated (EF008836) Yes
Approval (EF008837) Measuring Instruments Directive
Pulse output (EF008838) Electrical
Pulse type (EF008839) S0
Type of indication (EF000306) Digital
Mounting method (EF000003) DRA (DIN-rail adapter)
Width in number of modular spacings (EF002950) 2
Width (EF000008) 35 mm
Depth (EF000049) 65 mm
Height (EF000040) 26.5 mm
Type of interface (EF006977) Other
EEC40 signature (EF008845) No
With lock code (EF008846) No
Number of positions total (counter) (EF004442) 7
Degree of protection (IP) (EF005474) IP20
