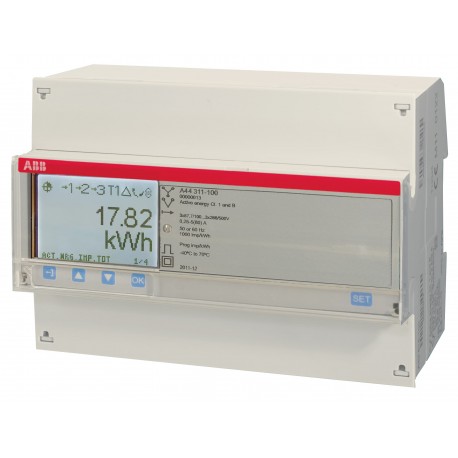

2CMA170536R1000 ABB Active energy Cl. B
2CMA170536R1000
170536
ABB
1 Pcs.
Active energy Cl. B
Ener counter. A44 311-100 Silver
Energy meter 'Silver', IR port, 3-phase, 1 A
Automation > Kilowatt-hour meter
EQ-METERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
2CMA170536R1000 ABB Active energy Cl. B serves as an electricity meter designed for accurate active energy measurement in four-pole industrial applications. Such metering devices are deployed within distribution enclosures to track power usage parameters and support energy management protocols. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 66.08 %
- ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill
- Improved Energy Efficiency for Customers: Process Efficiency - Product improves/optimizes process
- End Of Life Disassembling Instructions: 9AKK108470A1374
- Environmental Product Declaration - EPD: 9AKK108467A4138
- Function: Electricity meter
- Sub-Function: Silver
- Current Rating: 1 A
- Communication Interface: IR port
- Accuracy: Active Energy Class B MID (±1%)
- Measuring Instrument Conformity: Measurement Instrument Directive (MID)
- Meter Tariff Control: External
- Meter Tariff Rating: Multi-Tariff
- Pulse Output Rate: 1 … 9999 kvar·h
- Model Number: Measurement transformer
- Number of Poles: 4P
More info
▲| ABB EcoSolutions | |
|---|---|
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 66.08 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Process Efficiency - Product contribute to reducing customer operations environmental footprint | |
| Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset | |
| Extended Product Lifetime | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| End Of Life Disassembling Instructions | 9AKK108470A1374 |
| Environmental Product Declaration - EPD | 9AKK108467A4138 |
| Technical | |
| Function | Electricity meter |
| Sub-Function | Silver |
| Current Rating | 1 A |
| Communication Interface | IR port |
| Accuracy | Active Energy Class B MID (±1%) |
| Measuring Instrument Conformity | Measurement Instrument Directive (MID) |
| Meter Tariff Control | External |
| Meter Tariff Rating | Multi-Tariff |
| Pulse Output Rate | 1 … 9999 kvar·h |
| Model Number | Measurement transformer |
| Number of Poles | 4P |
| Number of Phases | 3-phase |
| Number of Counter Positions | 7 |
| Number of Digital In/Outputs | 2 Digital Inputs, 2 Digital Outputs |
| Energy Meter Type | AC-MID |
| Meter Type | Transformer connected |
| Pulse Output Type | Electrical |
| Type of Indicator | Digital |
| Additional Information | CT (1A, 5A) |
| Connecting Capacity Main Circuit | 0.5 ... 10 mm² |
| Electrical | |
| Rated Voltage (Ur) | 57.7…400 (Un) N-L V |
| 100…500 (Un) L-L V | |
| Voltage Range | 3x47…331 V |
| Rated Current (In) | Maximum 6 A |
| Frequency (f) | 55 … 60 Hz |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Consumption (@Pcons) | 0.801 W |
| Design | |
| Enclosure Material | Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover. |
| Material Compliance | |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 70 °C |
| Degree of Protection | IP20 |
| Environmental Information | 2CMC484005D0001 |
| Dimensions | |
| Width in Number of Modular Spacings | 7 |
| Product Net Width | 123 mm |
| Product Net Height | 26.5 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 353 g |
| Size | 97X123X65 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.443 kg |
| E-Number (Finland) | 6701026 |
| E-Number (Norway) | 8204043 |
| E-Number (Sweden) | 0980718 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CMC484002D0001 |
| EU Data Act Compliance Declaration | 9AKK108471A5047 |
| Installation | |
| Instructions and Manuals | 2CMC484003M0201 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CMC484001M0201 |
| External Classifications and Standards | |
| ETIM 9 | EC001506 - Kilowatt-hour meter |
| ETIM 10 | EC001506 - Electricity meter |
| UNSPSC | 41113667 |
| eClass | V11.0 : 27142316 |
| IDEA Granular Category Code (IGCC) | 3300 >> Kilowatt-hour meter |
| Object Classification Code | P |
| Standards | IEC 62053-21 |
