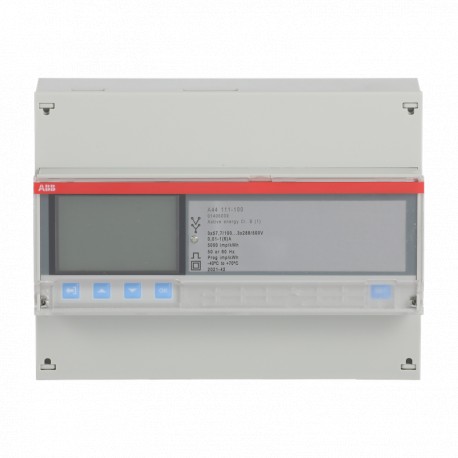

2CMA170533R1000 ABB Active energy Cl. B
2CMA170533R1000
170533
ABB
1 Pcs.
Active energy Cl. B
Ener counter. A44 111-100 Steel
Energy meter 'Steel', IR port, 3-phase, 1 A
Automation > Kilowatt-hour meter
EQ-METERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 66.08 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| UL 2799 Zero Waste To Landfill Validation available | |
| Improved Energy Efficiency for Customers | Process Efficiency - Product improves/optimizes process |
| Process Efficiency - Product contribute to making customer’s operations more resilient and reliable | |
| Process Efficiency - Product contribute to reducing customer operations environmental footprint | |
| Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset | |
| Extended Product Lifetime | Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services |
| End Of Life Disassembling Instructions | 9AKK108470A1374 |
| Environmental Product Declaration - EPD | 9AKK108467A4138 |
| Technical | |
| Function | Electricity meter |
| Sub-Function | Steel |
| Current Rating | 1 A |
| Communication Interface | IR port |
| Accuracy | Active Energy Class B MID (±1%) |
| Measuring Instrument Conformity | Measurement Instrument Directive (MID) |
| Meter Tariff Rating | One-Tariff |
| Pulse Output Rate | 1-999999 |
| Number of Poles | 4P |
| Number of Phases | 3-phase |
| Number of Counter Positions | 7 |
| Number of Digital In/Outputs | 1 Digital Output |
| Meter Type | Transformer connected |
| Pulse Output Type | Electrical |
| Type of Indicator | Digital |
| Additional Information | CT (1A, 5A) |
| Connecting Capacity Main Circuit | 0.5 ... 10 mm² |
| Electrical | |
| Rated Voltage (Ur) | 3x57.7-288 V |
| Voltage Range | 3x47…331 V |
| Rated Current (In) | 1 A |
| Maximum 6 A | |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Consumption (@Pcons) | 0.801 W |
| Design | |
| Enclosure Material | Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover. |
| Material Compliance | |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation -40 ... 70 °C |
| Degree of Protection | IP20 |
| Environmental Information | 2CMC484005D0001 |
| Dimensions | |
| Width in Number of Modular Spacings | 7 |
| Product Net Width | 123 mm |
| Product Net Height | 26.5 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 353 g |
| Size | 97X123X65 |
| Dimension Diagram | 2CMC484001M0201 |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.443 kg |
| E-Number (Finland) | 6625013 |
| E-Number (Norway) | 8204037 |
| E-Number (Sweden) | 0980715 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CMC484002D0001 |
| EU Data Act Compliance Declaration | 9AKK108471A5047 |
| Installation | |
| Instructions and Manuals | 2CMC484003M0201 |
| Mounting Type | DIN-Rail |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CMC484001M0201 |
| External Classifications and Standards | |
| ETIM 9 | EC001506 - Kilowatt-hour meter |
| ETIM 10 | EC001506 - Electricity meter |
| UNSPSC | 41113667 |
| eClass | V11.0 : 27142316 |
| IDEA Granular Category Code (IGCC) | 3300 >> Kilowatt-hour meter |
| Object Classification Code | P |
| Standards | EN 50470-1 |
| Feature Name | Feature Value |
|---|---|
| Type of meter (EF005441) | Electronic |
| Nominal current (In) (EF008873) | 6 A |
| Max. current (Imax) (EF000877) | 6 A |
| Accuracy class (EF008842) | B |
| Pole type (EF008843) | Four conductor |
| Tariff type (EF007550) | One-tariff |
| Measurement type load profile (EF008844) | No |
| Escapement mechanism (EF008835) | Yes |
| Calibrated (EF008836) | Yes |
| Approval (EF008837) | Measuring Instruments Directive |
| Pulse output (EF008838) | Electrical |
| Pulse type (EF008839) | S0 |
| Type of indication (EF000306) | Digital |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Width in number of modular spacings (EF002950) | 7 |
| Width (EF000008) | 123 mm |
| Depth (EF000049) | 65 mm |
| Height (EF000040) | 26.5 mm |
| Type of interface (EF006977) | Other |
| EEC40 signature (EF008845) | No |
| With lock code (EF008846) | No |
| Number of positions total (counter) (EF004442) | 7 |
| Degree of protection (IP) (EF005474) | IP20 |
