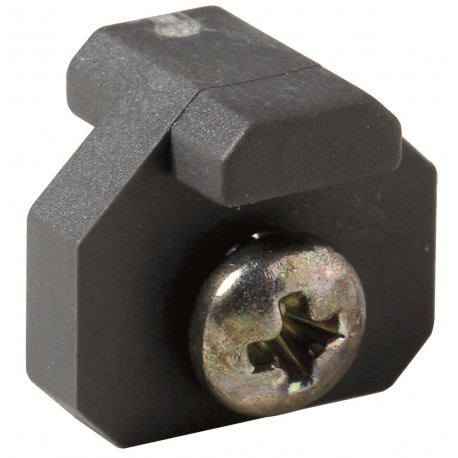

1SDA062158R1 ABB ACCESS.FOR LOCK IN EXTRACT T7-T7M-X1
1SDA062158R1
062158
ABB
1 Pcs.
ACCESS.FOR LOCK IN EXTRACT T7-T7M-X1
TEST/REMOVED LOCK (ADDITIONAL)-T7X1
Automation > Accessories/spare parts for low-voltage switch technology
Accessories T7-X1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA062158R1 ABB ACCESS.FOR LOCK IN EXTRACT T7-T7M-X1 from ABB provides mechanical locking provisions to safely secure withdrawable circuit breakers in their inserted or extracted service positions.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: KT7XPLA
- EAN: 8015644646974
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Gross Weight: 0.1 kg
- Package Level 1 EAN: 8015644646974
- Product Main Type: Accessories for Tmax T
- Product Name: Accessory
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | KT7XPLA |
| EAN | 8015644646974 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Gross Weight | 0.1 kg |
| Package Level 1 EAN | 8015644646974 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | X1 |
| Suitable for Product Class | SACE Emax |
| Technical | |
| Configuration Type | Loose or configurable |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000529R0644 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| Object Classification Code | Q |
| UNSPSC | 39120000 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371390 |
