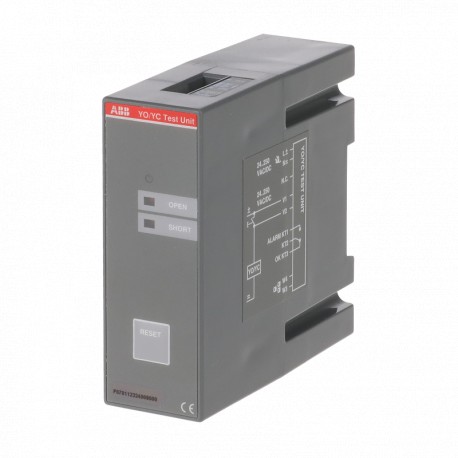

1SDA082751R1 ABB YO/YC TEST UNIT TmaxT/XT-X1-Emax-Emax2
1SDA082751R1
082751
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA082751R1 ABB YO/YC TEST UNIT TmaxT/XT-X1-Emax-Emax2 functions as a portable testing instrument designed to verify the operational readiness of shunt trips and opening/closing coils on low-voltage circuit breakers. Test units allow maintenance technicians to safely check control circuit integrity during routine switchgear inspections without energizing primary busbars. Physical dimensions and compliance metrics are documented below.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Environmental Information: 1SDL000145R0
- Order Code US and Canada: ZEAYOYCT
- EAN: 8015644894290
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 85 mm
- Product Net Height: 66 mm
- Product Net Depth / Length: 116 mm
- Product Net Weight: 0.216 kg
- Gross Weight: 0.216 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 85 mm
- Package Level 1 Height: 66 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Environmental | |
| Environmental Information | 1SDL000145R0 |
| Ordering | |
| Order Code US and Canada | ZEAYOYCT |
| EAN | 8015644894290 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 85 mm |
| Product Net Height | 66 mm |
| Product Net Depth / Length | 116 mm |
| Product Net Weight | 0.216 kg |
| Gross Weight | 0.216 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 85 mm |
| Package Level 1 Height | 66 mm |
| Package Level 1 Depth / Length | 116 mm |
| Package Level 1 Gross Weight | 0.216 kg |
| Package Level 1 EAN | 8015644894290 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2, Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E1, E2, E3, E4, E6, T8, T7, X1, XT7-XT7M, E1.2, E2.2, E4.2, E6.2, XT1, XT2, XT3, XT4 |
| Suitable for Product Class | SACE Emax 2, SACE Emax, SACE Tmax T, SACE Tmax XT, X1 |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | 1SDL000165R0019 |
| 1SDL000165R0020 | |
| 1SDL000165R0021 | |
| 1SDL000165R0022 | |
| Instructions and Manuals | 1SDH001442R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371392 |
