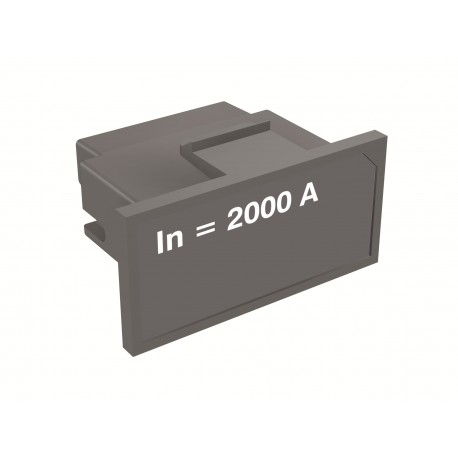

1SDA074267R1 ABB RATING PLUG 2000 MOUNTED-E1.2/E6.2
1SDA074267R1
074267
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This part functions as a 1SDA074267R1 ABB RATING PLUG 2000 MOUNTED-E1.2/E6.2, which is an internal calibration accessory used within power circuit breakers to define trip units and rated current thresholds. Rating plugs allow maintenance personnel to adjust protective device parameters to match specific electrical distribution loads and conductor ampacities.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- EAN: 8015644782009
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 0 mm
- Product Net Height: 0 mm
- Product Net Depth / Length: 0 mm
- Product Net Weight: 1 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 EAN: 8015644782009
- Product Main Type: Accessories for Emax 2
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8015644782009 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 0 mm |
| Product Net Height | 0 mm |
| Product Net Depth / Length | 0 mm |
| Product Net Weight | 1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 EAN | 8015644782009 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2 |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E2.2, E4.2, E6.2 |
| Suitable for Product Class | SACE Emax 2 |
| Technical | |
| Configuration Type | Mounted only |
| Rated Current (In) | 2000 A |
| Rated Voltage (Ur) | 2000 V |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0204 |
| Declaration of Conformity - CE | 9AKK106713A5902 |
| 9AKK106713A5545 | |
| 9AKK106713A5544 | |
| Instructions and Manuals | 1SDH001000R0510 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371392 |
