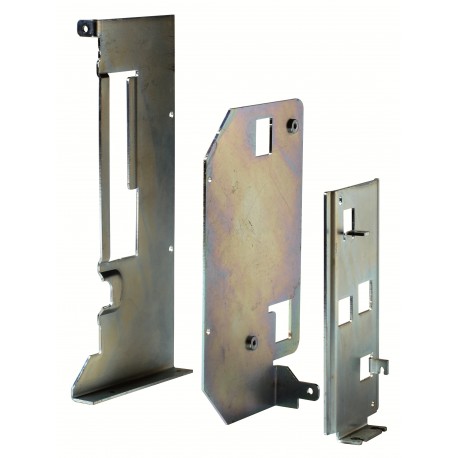

1SDA076020R1 ABB Support fixation base for E1.2 F
1SDA076020R1
076020
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Rack "Megamax-Emax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb Support fixation base for E1.2 F (1SDA076020R1) provides robust mechanical mounting support and structural stability for heavy-duty air circuit breakers. Fixation bases and mounting cradles are commonly employed in switchgear assemblies to securely anchor high-capacity protective devices within electrical enclosures. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 2CMT2023-006524
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZE1FFPF
- EAN: 8015644801175
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.302 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 200 mm
- Package Level 1 Height: 45 mm
- Package Level 1 Depth / Length: 200 mm
- Package Level 1 Gross Weight: 0.318 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZE1FFPF |
| EAN | 8015644801175 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.302 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 200 mm |
| Package Level 1 Height | 45 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Gross Weight | 0.318 kg |
| Package Level 1 EAN | 8015644801175 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2, Accessories for Emax 3, Accessories for XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E1.2 |
| E1.3 | |
| XT7-XT7M | |
| Suitable for Product Class | SACE Tmax XT |
| SACE Emax 2 | |
| SACE Emax 3 | |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC/UL |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| 1SDC210100D0204 | |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| Instructions and Manuals | 1SDH000999R0812 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371392 |
