View larger
Images are for illustrative purposes only. Please refer to data sheet for details

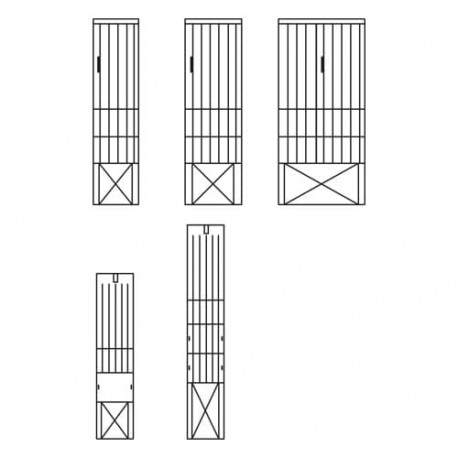

4TBW844132C0100 ABB EH4-1 1600x745x224
4TBW844132C0100
844132
ABB
1 Pcs.
EH4-1 1600x745x224
EH41 Cabinet Size. 1 1600x745x224 IP44, IK10
Automation > Enclosure/switchgear cabinet (empty)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Connection Holes | 0 |
| Number of Doors | 2 |
| Cover Plate Type | Door |
| Door Type | Single |
| Accessories Available | Yes |
| Impact Resistance Rating | IK10 |
| Electrical | |
| Power Loss | Total 94.9 W |
| Δt = 20K - Enclosures 94.9 W | |
| Δt = 25K - Enclosures 125.2 W | |
| Δt = 30K - Enclosures 157.1 W | |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Material | GRP (Glass fibre reinforced plastic) |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | EH4_GE_CE_GEN-CE19-563_L38 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20191030 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP44 |
| Dimensions | |
| Product Net Width | 745 mm |
| Product Net Height | 1600 mm |
| Product Net Depth / Length | 224 mm |
| Product Net Weight | 30 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 30 kg |
| Replaced Product ID (OLD) | 844132 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | EH4_GE_CE_GEN-CE19-563_L38 |
| Installation | |
| Mounting Type | Pedestal (in-ground mounting) |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| eClass | V11.0 : 27142408 |
