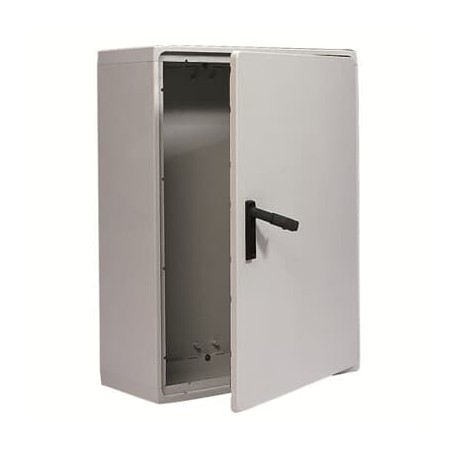

ABB 4TBP833858C0100 4TBP833858C0100 ABB PolySafe IP54 1000x1000x320 DP transp. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBP833858C0100 ABB PolySafe IP54 1000x1000x320 DP transp.

4TBP833858C0100

833858

ABB

1 Pcs.

PolySafe IP54 1000x1000x320 DP transp. PolySafe Encl. IP54 1000x1000x320 winDD

Automation > Empty cabinet
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for demanding industrial environments, the 4TBP833858C0100 ABB PolySafe IP54 1000x1000x320 DP transp. acts as a durable plastic double-door enclosure that protects electrical distribution systems from dust and splashing water. Panel builders rely on these large transparent-door cabinets to monitor internal instrumentation easily while maintaining high safety standards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of Flange Openings: 0
  • Number of Conduit Inlets: 0
  • Number of Rows: 0
  • Cover Plate Type: Door
  • Enclosure Type NEMA: Type12
  • Door Type: Double
  • Door Surface Finishing: Transparent
  • Surface Finishing: Untreated
  • Housing Material: Plastic
  • Cover Style: with Notch
  • RAL Number: RAL 7035 - Light Grey
  • Color: Grey
  • Number of Modules: 0
  • RoHS Declaration: 9AJK000580
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20220301

More info

▲
Technical
Number of Flange Openings0
Number of Conduit Inlets0
Number of Rows0
Cover Plate TypeDoor
Enclosure Type NEMAType12
Door TypeDouble
Door Surface FinishingTransparent
Design
Surface FinishingUntreated
Housing MaterialPlastic
Cover Stylewith Notch
RAL NumberRAL 7035 - Light Grey
ColorGrey
Number of Modules0
Material Compliance
RoHS Declaration9AJK000580
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20220301
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Environmental
Degree of ProtectionIP54
Protection ClassIsolated (Class II)
Dimensions
Width in Number of Modular Spacings0
Product Net Width1000 mm
Product Net Height1000 mm
Product Net Depth / Length320 mm
Product Net Weight75 kg
Built-In Depth (t2)286 mm
ThicknessCabinet Plate 4 mm
Door Plate 4 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight79 kg
Replaced Product ID (OLD)833858
Certificates and Declarations
Declaration of Conformity - CE9AJK000580
Installation
Mounting TypeFloor installation
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC000261 - Enclosure/cabinet (empty)
ETIM 10EC000261 - Enclosure/cabinet (empty)
eClassV11.0 : 27142408
