View larger

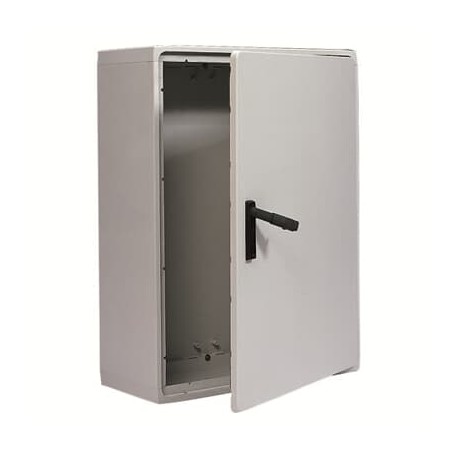

4TBP833851C0100 ABB PolySafe IP54 500x750x320 P. Transp.
4TBP833851C0100
833851
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
PolySafe enclosure 4TBP833851C0100 from Abb is a protective housing unit designed to shield sensitive electrical components, terminal blocks, and control gear from dust, moisture, and physical damage in industrial environments.
Enclosures of this type are routinely deployed across factory floors and utility installations to centralize wiring and safeguard automation hardware. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of Flange Openings: 0
- Number of Conduit Inlets: 0
- Number of Rows: 0
- Cover Plate Type: Door
- Enclosure Type NEMA: Type12
- Door Type: Single
- Door Surface Finishing: Transparent
- Surface Finishing: Untreated
- Housing Material: Plastic
- Cover Style: with Notch
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
- Number of Modules: 0
- RoHS Declaration: 9AJK000580
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20220301
More info
▲| Technical | |
|---|---|
| Number of Flange Openings | 0 |
| Number of Conduit Inlets | 0 |
| Number of Rows | 0 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type12 |
| Door Type | Single |
| Door Surface Finishing | Transparent |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Cover Style | with Notch |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 0 |
| Material Compliance | |
| RoHS Declaration | 9AJK000580 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220301 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP54 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 0 |
| Product Net Width | 750 mm |
| Product Net Height | 500 mm |
| Product Net Depth / Length | 320 mm |
| Product Net Weight | 46 kg |
| Built-In Depth (t2) | 286 mm |
| Thickness | Cabinet Plate 4 mm |
| Door Plate 4 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 48.5 kg |
| Replaced Product ID (OLD) | 833851 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000580 |
| Installation | |
| Mounting Type | Floor installation |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| eClass | V11.0 : 27142408 |
