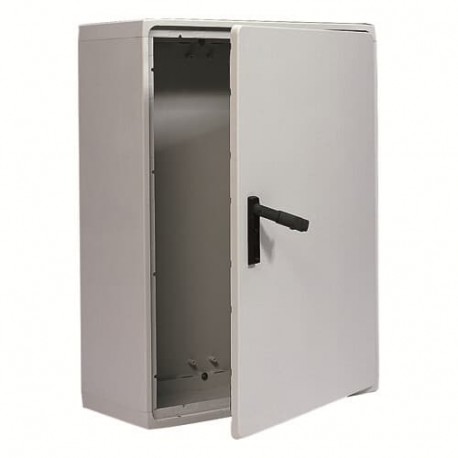

ABB 4TBP833850C0100 4TBP833850C0100 ABB PolySafe IP54 500x500x320 P. Transp. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBP833850C0100 ABB PolySafe IP54 500x500x320 P. Transp.

4TBP833850C0100

833850

ABB

1 Pcs.

PolySafe IP54 500x500x320 P. Transp. PolySafe Encl. IP54 500x500x320 window

Automation > Empty cabinet
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb PolySafe enclosure 4TBP833850C0100 is a sturdy glass-fibre reinforced plastic housing featuring a transparent door for easy visual monitoring of internal devices. Non-metallic industrial enclosures protect sensitive electrical components against harsh weather conditions and corrosive elements.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Maximum Load Capacity: Enclosure 10791 N
  • Number of Flange Openings: 0
  • Number of Conduit Inlets: 0
  • Number of Doors: 1
  • Number of Rows: 0
  • Cover Plate Type: Door
  • Enclosure Type NEMA: Type12
  • Door Type: Single
  • Door Surface Finishing: Transparent
  • Impact Resistance Rating: IK07
  • Power Loss: Total 65 W
  • Surface Finishing: Untreated
  • Housing Material: Plastic
  • Material: GRP (Glass fibre reinforced plastic)
  • Cover Style: with Notch
  • RAL Number: RAL 7035 - Light Grey

More info

▲
Technical
Maximum Load CapacityEnclosure 10791 N
Door(s) 7848 N
Mounting Plate 10791 N
Number of Flange Openings0
Number of Conduit Inlets0
Number of Doors1
Number of Rows0
Cover Plate TypeDoor
Enclosure Type NEMAType12
Door TypeSingle
Door Surface FinishingTransparent
Impact Resistance RatingIK07
Electrical
Power LossTotal 65 W
Δt = 20K - Enclosures 65 W
Design
Surface FinishingUntreated
Housing MaterialPlastic
MaterialGRP (Glass fibre reinforced plastic)
Cover Stylewith Notch
RAL NumberRAL 7035 - Light Grey
ColorGrey
Number of Modules0
Material Compliance
RoHS Declaration9AJK000580
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20220301
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIP35935999-5374-49bd-bf9a-c973119bdd55 Belgium
WEEE CategoryProduct Not in WEEE Scope
Environmental
Degree of ProtectionIP54
Protection ClassIsolated (Class II)
Dimensions
Width in Number of Modular Spacings0
Product Net Width500 mm
Product Net Height500 mm
Product Net Depth / Length320 mm
Product Net Weight14.5 kg
Built-In Depth (t2)286 mm
ThicknessCabinet Plate 4 mm
Door Plate 4 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight15.3 kg
Replaced Product ID (OLD)833850
Certificates and Declarations
Declaration of Conformity - CE9AJK000580
Installation
Mounting TypeFloor installation
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC000261 - Enclosure/cabinet (empty)
ETIM 10EC000261 - Enclosure/cabinet (empty)
UNSPSC39121103
eClassV11.0 : 27142408
