View larger
Images are for illustrative purposes only. Please refer to data sheet for details

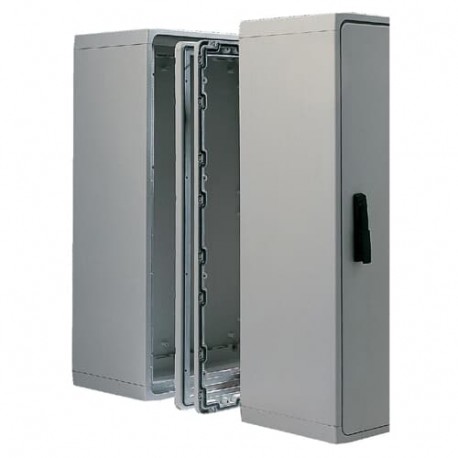

4TBP833584C0100 ABB KIT EXTENSION PROF. 500x500
4TBP833584C0100
833584
ABB
1 Pcs.
KIT EXTENSION PROF. 500x500
POLYSAFE DEPTH-EXTEN. IP65 500X500X320
Automation > Profile (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Additional Information | |
|---|---|
| Busbar Dimensions | Height 15 mm |
| CAD Dimensional Drawing | 4TBP833584C0100STP |
| CN8 | 8538100000 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Bosnia and Herzegovina |
| Customs Tariff Number | 8538100000 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| EAN | 5411815252853 |
| ETIM 10 | EC002518 - Profile (enclosure/cabinet) |
| ETIM 7 | EC002518 - Profile (switchgear cabinet) |
| ETIM 8 | EC002518 - Profile (enclosure/cabinet) |
| ETIM 9 | EC002518 - Profile (enclosure/cabinet) |
| EU Data Act Applicability and Compliance | Not Applicable |
| Gross Weight | 12.7 kg |
| IDEA Granular Category Code (IGCC) | 4465 >> Enclosure General Accessories |
| Invoice Description | POLYSAFE DEPTH-EXTEN. IP65 500X500X320 |
| Material | Plastic |
| Minimum Order Quantity | BX 1 piece |
| Model Number | Metric |
| Mounting Type | Screw mounting |
| Package Level 1 Depth / Length | 504 mm |
| Package Level 1 EAN | 5411815252853 |
| Package Level 1 Gross Weight | 12.7 kg |
| Package Level 1 Height | 504 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 355 mm |
| Product Main Type | Polysafe |
| Product Name | Depth Extension |
| Product Net Depth / Length | 0.32 m |
| Product Net Height | 0.5 m |
| Product Net Weight | 12 kg |
| Product Net Width | 0.5 m |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 833584 |
| Selling Unit of Measure | piece |
| Short Description | POLYSAFE DEPTH-EXTEN. IP65 500X500X320 |
| Surface Finishing | Untreated |
| UNSPSC | 39121321 |
| WEEE Category | Product Not in WEEE Scope |
| eClass | V11.0 : 27180907 |
| Product Keywords | Not Available |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Metric |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Untreated |
| Length (EF001438) | 320.00 mm |
| Stepless mounting (EF001086) | No |
| Mounting method (EF000003) | Screw mounting |
| Profile height busbar (EF008269) | 15 mm |
