4TBP833577C0100 ABB ZOCALO 1250x320
4TBP833577C0100
833577
ABB
1 Pcs.
Automation > Base/base element (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

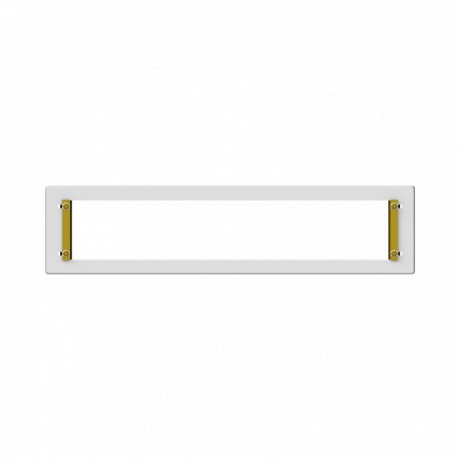

Abb part number 4TBP833577C0100 is an Abb ZOCALO 1250x320 designed to act as an intermediate base component within modular electrical structures. Intermediate base plates help configure complex enclosure footprints across industrial distribution and automation applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Maximum Load Capacity: 80 kg
- Model Number: Base intermediate plate
- Impact Resistance Rating: IK10
- Material: Plastic
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
- REACH Declaration: 9AJK000617
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20230911
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
- Product Net Width: 320 mm
- Product Net Height: 60 mm
- Product Net Depth / Length: 1250 mm
- Product Net Weight: 5.8 kg
- Package Level 1 Units: box 1 piece
More info
▲| Technical | |
|---|---|
| Maximum Load Capacity | 80 kg |
| Model Number | Base intermediate plate |
| Impact Resistance Rating | IK10 |
| Design | |
| Material | Plastic |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 320 mm |
| Product Net Height | 60 mm |
| Product Net Depth / Length | 1250 mm |
| Product Net Weight | 5.8 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 6.1 kg |
| Replaced Product ID (OLD) | 833577 |
| Certificates and Declarations | |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000721 - Base/base element (enclosure/cabinet) |
| ETIM 10 | EC000721 - Base/base element (enclosure/cabinet) |
| UNSPSC | 39121321 |
| eClass | V11.0 : 27182003 |
| IDEA Granular Category Code (IGCC) | 4465 >> Enclosure General Accessories |
