View larger
Images are for illustrative purposes only. Please refer to data sheet for details

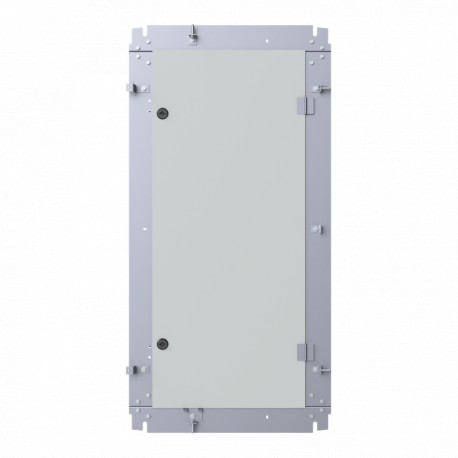

4TBP833561C0100 ABB INTERIOR DOOR 1000x500 PS 420
4TBP833561C0100
833561
ABB
1 Pcs.
INTERIOR DOOR 1000x500 PS 420
COVER PLATE HINGED 1000X500 PVC
Automation > Door/operating panel (switchgear cabinet)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Model Number | Inner door |
| Design | |
| Surface Finishing | Untreated |
| Material | Plastic |
| Color | Grey |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP20 |
| Dimensions | |
| Product Net Width | 500 mm |
| Product Net Height | 40 mm |
| Product Net Depth / Length | 1000 mm |
| Product Net Weight | 3.9 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 4.2 kg |
| Replaced Product ID (OLD) | 833561 |
| Certificates and Declarations | |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000747 - Door/operating panel (enclosure/cabinet) |
| ETIM 10 | EC000747 - Door/operating panel (enclosure/cabinet) |
| UNSPSC | 39121321 |
| eClass | V11.0 : 27182204 |
| IDEA Granular Category Code (IGCC) | 4465 >> Enclosure General Accessories |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Inner door |
| Version as glazed door (EF006966) | No |
| Version as door for disconnecting switch interlocking (EF006967) | No |
| Width (EF000008) | 500 mm |
| Height (EF000040) | 40 mm |
| Depth (EF000049) | 1000 mm |
| EMC-version (EF001062) | No |
| Material (EF002169) | Plastic |
| Surface finishing (EF006569) | Untreated |
| Colour (EF000007) | Grey |
| Degree of protection (IP) (EF005474) | IP20 |
