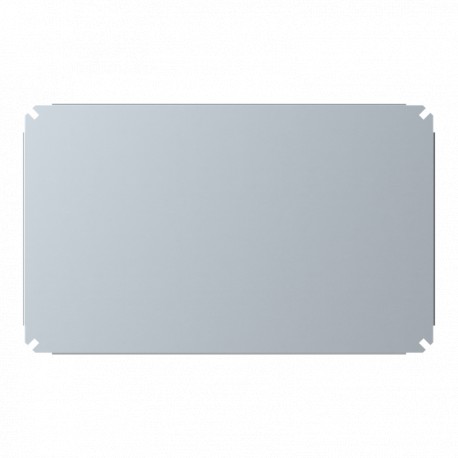

ABB 4TBP833501C0100 4TBP833501C0100 ABB METAL PLATE 2mm PS 230/320 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBP833501C0100 ABB METAL PLATE 2mm PS 230/320

4TBP833501C0100

833501

ABB

1 Pcs.

METAL PLATE 2mm PS 230/320 MOUNT.PL. (STEEL) 750X500

Automation > Mounting plate for distribution board
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A metal plate 2mm PS 230/320 produced by ABB functions as a robust internal mounting surface for distribution boards, enabling the secure positioning of electrical control devices. Panel builders utilize these solid sheets to configure modular electrical systems efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CAD Dimensional Drawing: 4TBP833501C0100STP
  • CN8: 8538909999
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • Country or Territory of Origin: Belgium
  • Customs Tariff Number: 8538909999
  • Data Sheet, Technical Information: 9AKK107680A5160
  • E-Number (Norway): 2521439
  • EAN: 5411815252143
  • ETIM 10: EC000213 - Mounting plate for distribution board
  • ETIM 7: EC000213 - Mounting plate for distribution board
  • ETIM 8: EC000213 - Mounting plate for distribution board
  • ETIM 9: EC000213 - Mounting plate for distribution board
  • EU Data Act Applicability and Compliance: Not Applicable
  • Gross Weight: 4.2 kg
  • IDEA Granular Category Code (IGCC): 4416 >> Enclosure plates or covers
  • Invoice Description: MOUNT.PL. (STEEL) 750X500

More info

▲
Additional Information
CAD Dimensional Drawing4TBP833501C0100STP
CN88538909999
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
Country or Territory of OriginBelgium
Customs Tariff Number8538909999
Data Sheet, Technical Information9AKK107680A5160
E-Number (Norway)2521439
EAN5411815252143
ETIM 10EC000213 - Mounting plate for distribution board
ETIM 7EC000213 - Mounting plate for distribution board
ETIM 8EC000213 - Mounting plate for distribution board
ETIM 9EC000213 - Mounting plate for distribution board
EU Data Act Applicability and ComplianceNot Applicable
Gross Weight4.2 kg
IDEA Granular Category Code (IGCC)4416 >> Enclosure plates or covers
Invoice DescriptionMOUNT.PL. (STEEL) 750X500
MaterialSteel
Minimum Order QuantityBX 1 piece
Package Level 1 Depth / Length755 mm
Package Level 1 EAN5411815252143
Package Level 1 Gross Weight4.2 kg
Package Level 1 Height10 mm
Package Level 1 Unitsbox 1 piece
Package Level 1 Width505 mm
Product Main TypePolysafe
Product NameMounting Plate
Product Net Depth / Length750 mm
Product Net Height5 mm
Product Net Weight4 kg
Product Net Width500 mm
REACH Date20230911
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
Replaced Product ID (OLD)833501
Selling Unit of Measurepiece
Short DescriptionMOUNT.PL. (STEEL) 750X500
Surface FinishingGalvanized
UNSPSC39121302
WEEE CategoryProduct Not in WEEE Scope
eClassV11.0 : 27400639
Product KeywordsNot Available

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
