View larger
Images are for illustrative purposes only. Please refer to data sheet for details

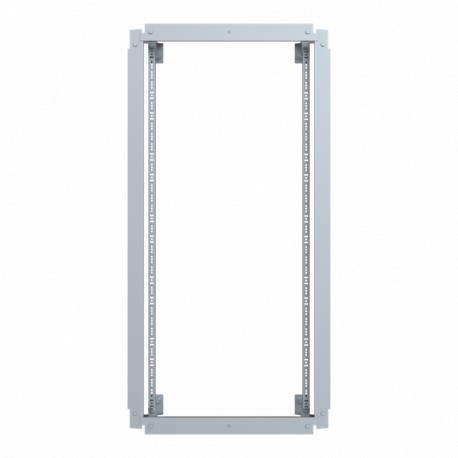

4TBP833268C0100 ABB POLYSAFE MODULAR CHASSIS 1000x500 120M
4TBP833268C0100
833268
ABB
1 Pcs.
POLYSAFE MODULAR CHASSIS 1000x500 120M
PS MODULAR FRAME 1000X500 120 MOD
Automation > Panel for distribution board
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of DIN Rails for Mounting | 0 |
| Number of Modular Spacings per DIN Rail | 120 |
| Cover Plate Type | With notch |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 500 mm |
| Product Net Height | 21.4 mm |
| Product Net Depth / Length | 1000 mm |
| Product Net Weight | 2.7 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 2.8 kg |
| Replaced Product ID (OLD) | 833268 |
| Certificates and Declarations | |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000264 - Panel for distribution board |
| ETIM 10 | EC000264 - Panel for distribution board |
| UNSPSC | 31162308 |
| eClass | V11.0 : 27142411 |
| IDEA Granular Category Code (IGCC) | 2983 >> Mounting panels |
