View larger
Images are for illustrative purposes only. Please refer to data sheet for details

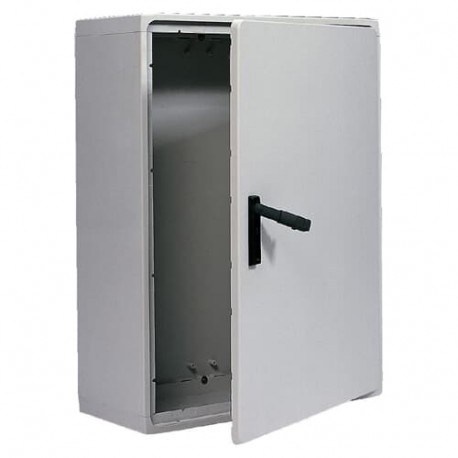

4TBP833193C0100 ABB POLYSAFE 240 (500x1000x320)
4TBP833193C0100
833193
ABB
1 Pcs.
POLYSAFE 240 (500x1000x320)
POLYSAFE ENCL. IP65 500X1000X320
Automation > Enclosure/switchgear cabinet (empty)
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Flange Openings | 0 |
| Number of Conduit Inlets | 0 |
| Number of Rows | 0 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type12 |
| Door Type | Single |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 0 |
| Material Compliance | |
| RoHS Declaration | 9AJK000580 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220301 |
| REACH Declaration | 9AJK000617 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 8a5a8414-58a0-48a4-a881-f0c53a911417 Belgium |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP65 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 0 |
| Product Net Width | 1000 mm |
| Product Net Height | 500. mm |
| Product Net Depth / Length | 320 mm |
| Product Net Weight | 18 kg |
| Built-In Depth (t2) | 286 mm |
| Thickness | Cabinet Plate 4 mm |
| Door Plate 4 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 19 kg |
| Replaced Product ID (OLD) | 833193 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000580 |
| Installation | |
| Mounting Type | Floor installation |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| eClass | V11.0 : 27142408 |
