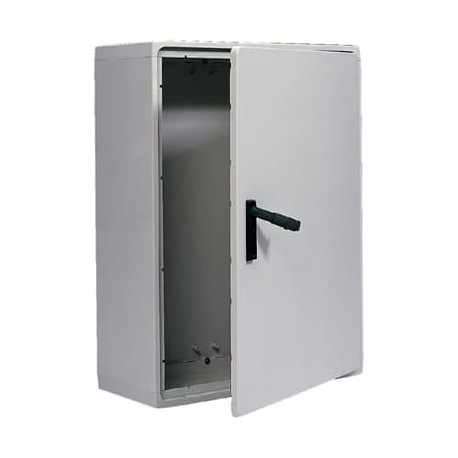

4TBP833040C0100 ABB POLYSAFE 452 (1000x1250x320)
4TBP833040C0100
833040
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 4TBP833040C0100 ABB POLYSAFE 452 is a large-format plastic industrial enclosure engineered to house comprehensive electrical distribution and automation systems. Heavy-duty protective cabinets shield sensitive internal controls from dust, moisture, and chemical exposure in demanding industrial environments.
Specific pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of Flange Openings: 0
- Number of Conduit Inlets: 0
- Number of Rows: 0
- Cover Plate Type: Door
- Enclosure Type NEMA: Type12
- Door Type: Double
- Surface Finishing: Untreated
- Housing Material: Plastic
- Cover Style: Closed
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
- Number of Modules: 0
- RoHS Declaration: 9AJK000580
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20220301
- REACH Declaration: 9AJK000617
More info
▲| Technical | |
|---|---|
| Number of Flange Openings | 0 |
| Number of Conduit Inlets | 0 |
| Number of Rows | 0 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type12 |
| Door Type | Double |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 0 |
| Material Compliance | |
| RoHS Declaration | 9AJK000580 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220301 |
| REACH Declaration | 9AJK000617 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 32f455a8-ac40-4c05-b4e8-dfedc2dfc30d Belgium |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP65 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 0 |
| Product Net Width | 1250 mm |
| Product Net Height | 1000 mm |
| Product Net Depth / Length | 320 mm |
| Product Net Weight | 40 kg |
| Built-In Depth (t2) | 286 mm |
| Thickness | Cabinet Plate 4 mm |
| Door Plate 4 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 42.2 kg |
| Replaced Product ID (OLD) | 833040 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000580 |
| Installation | |
| Mounting Type | Floor installation |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| eClass | V11.0 : 27142408 |
