4TBP833028C0100 ABB POLYSAFE 430 (1000x750x320)
4TBP833028C0100
833028
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

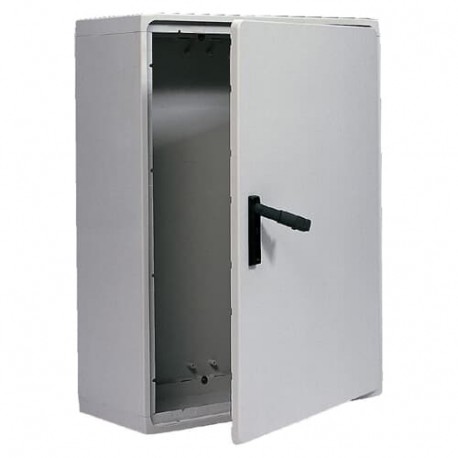

A high-capacity empty enclosure from Abb, catalogued as part number 4TBP833028C0100, gives technicians a versatile housing framework for custom electrical control gear and distribution systems. Industrial cabinets of this grade ensure internal equipment stays shielded against dust and liquid ingress in demanding facilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Built-In Depth ( t 2 ): 286 mm
- CAD Dimensional Drawing: 4TBP833028C0100STP
- CN8: 8538100000
- Color: Grey
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- Country or Territory of Origin: Bosnia and Herzegovina
- Cover Plate Type: Door
- Cover Style: Closed
- Customs Tariff Number: 8538100000
- Data Sheet, Technical Information: 9AKK107680A5160
- Declaration of Conformity - CE: 9AJK000580
- Degree of Protection: IP65
- Door Type: Single
- EAN: 5411815251108
- ETIM 10: EC000261 - Enclosure/cabinet (empty)
- ETIM 7: EC000058 - Empty cabinet
More info
▲| Additional Information | |
|---|---|
| Built-In Depth (t2) | 286 mm |
| CAD Dimensional Drawing | 4TBP833028C0100STP |
| CN8 | 8538100000 |
| Color | Grey |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Bosnia and Herzegovina |
| Cover Plate Type | Door |
| Cover Style | Closed |
| Customs Tariff Number | 8538100000 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| Declaration of Conformity - CE | 9AJK000580 |
| Degree of Protection | IP65 |
| Door Type | Single |
| EAN | 5411815251108 |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 7 | EC000058 - Empty cabinet |
| ETIM 8 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| EU Data Act Applicability and Compliance | Not Applicable |
| Enclosure Type NEMA | Type4X |
| Gross Weight | 30.6 kg |
| Housing Material | Plastic |
| Impact Resistance Rating | IK10 |
| Interior Depth | 312 mm |
| Invoice Description | POLYSAFE ENCL. IP65 1000X750X320 |
| Material | GRP (Glass fibre reinforced plastic) |
| Maximum Load Capacity | Enclosure 10791 N |
| Door(s) 7848 N | |
| Mounting Plate 10791 N | |
| Minimum Order Quantity | BX 1 piece |
| Mounting Type | Floor installation |
| Number of Conduit Inlets | 0 |
| Number of Doors | 1 |
| Number of Flange Openings | 0 |
| Number of Locks | 1 |
| Number of Modules | 0 |
| Number of Rows | 0 |
| Package Level 1 Depth / Length | 760 mm |
| Package Level 1 EAN | 5411815251108 |
| Package Level 1 Gross Weight | 30.6 kg |
| Package Level 1 Height | 370 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 1030 mm |
| Package Level 3 Depth / Length | 120 mm |
| Package Level 3 Gross Weight | 122.1 kg |
| Package Level 3 Height | 195 mm |
| Package Level 3 Units | box 5 piece |
| Package Level 3 Width | 80 mm |
| Power Loss | Total 150 W |
| Δt = 20K - Enclosures 150 W | |
| Product Main Type | Polysafe |
| Product Name | POLYSAFE ENCL. IP65 1000X750X320 ; PS430P63 |
| Product Net Depth / Length | 320 mm |
| Product Net Height | 1000 mm |
| Product Net Weight | 29 kg |
| Product Net Width | 750 mm |
| Protection Class | Isolated (Class II) |
| RAL Number | RAL 7035 - Light Grey |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 833028 |
| RoHS Date | 20220301 |
| RoHS Declaration | 9AJK000580 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 32f455a8-ac40-4c05-b4e8-dfedc2dfc30d Belgium |
| Selling Unit of Measure | piece |
| Short Description | POLYSAFE ENCL. IP65 1000X750X320 |
| Surface Finishing | Untreated |
| Thickness | Cabinet Plate 4 mm |
| Door Plate 4 mm | |
| UNSPSC | 39121103 |
| WEEE Category | Product Not in WEEE Scope |
| Width in Number of Modular Spacings | 0 |
| eClass | V11.0 : 27142408 |
