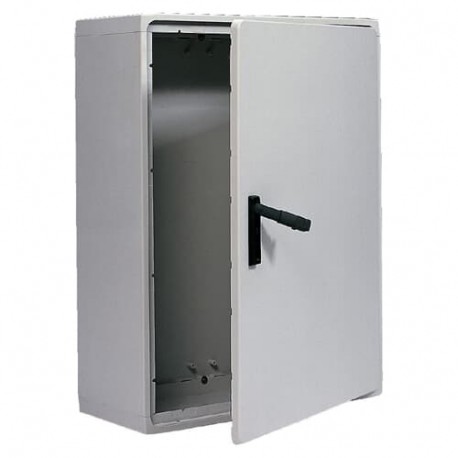

ABB 4TBP833020C0100 4TBP833020C0100 ABB POLYSAFE 352 (750x1250x320) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBP833020C0100 ABB POLYSAFE 352 (750x1250x320)

4TBP833020C0100

833020

ABB

1 Pcs.

POLYSAFE 352 (750x1250x320) POLYSAFE ENCL. IP65 750X1250X320 DD

Automation > Empty cabinet
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 4TBP833020C0100 Polysafe 352 is a robust glass-fiber reinforced plastic enclosure engineered to protect large electrical distributions and heavy-duty control assemblies. Glass-reinforced polyester enclosures offer exceptional corrosion resistance and mechanical strength for demanding operational settings.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Maximum Load Capacity: Enclosure 10791 N
  • Number of Flange Openings: 0
  • Number of Conduit Inlets: 0
  • Number of Doors: 2
  • Number of Rows: 0
  • Cover Plate Type: Door
  • Enclosure Type NEMA: Type4X
  • Door Type: Double
  • Impact Resistance Rating: IK10
  • Power Loss: Total 193,333333333333 W
  • Surface Finishing: Untreated
  • Housing Material: Plastic
  • Material: GRP (Glass fibre reinforced plastic)
  • Cover Style: Closed
  • RAL Number: RAL 7035 - Light Grey
  • Color: Grey

More info

▲
Technical
Maximum Load CapacityEnclosure 10791 N
Door(s) 7848 N
Mounting Plate 10791 N
Number of Flange Openings0
Number of Conduit Inlets0
Number of Doors2
Number of Rows0
Cover Plate TypeDoor
Enclosure Type NEMAType4X
Door TypeDouble
Impact Resistance RatingIK10
Electrical
Power LossTotal 193,333333333333 W
Δt = 20K - Enclosures 193,333333333333 W
Design
Surface FinishingUntreated
Housing MaterialPlastic
MaterialGRP (Glass fibre reinforced plastic)
Cover StyleClosed
RAL NumberRAL 7035 - Light Grey
ColorGrey
Number of Modules0
Material Compliance
RoHS Declaration9AJK000580
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20220301
REACH Declaration9AJK000617
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIP77054acb-8ab0-494b-b002-1590cd22b3b0 Belgium
WEEE CategoryProduct Not in WEEE Scope
Environmental
Degree of ProtectionIP65
Protection ClassIsolated (Class II)
Dimensions
Width in Number of Modular Spacings0
Product Net Width1250 mm
Product Net Height750 mm
Product Net Depth / Length320 mm
Product Net Weight84.1 kg
Built-In Depth (t2)286 mm
ThicknessCabinet Plate 4 mm
Door Plate 4 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight88.5 kg
Replaced Product ID (OLD)833020
Certificates and Declarations
Declaration of Conformity - CE9AJK000580
Installation
Mounting TypeFloor installation
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC000261 - Enclosure/cabinet (empty)
ETIM 10EC000261 - Enclosure/cabinet (empty)
UNSPSC39121103
eClassV11.0 : 27142408

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
