View larger

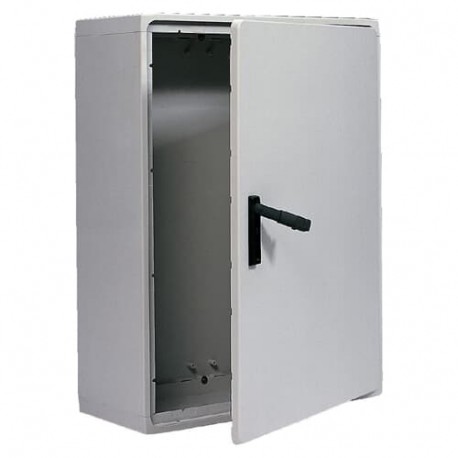

4TBP833012C0100 ABB POLYSAFE 330 (750x750x320)
4TBP833012C0100
833012
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
4TBP833012C0100 ABB POLYSAFE 330 (750x750x320) acts as a high-performance glass-fibre reinforced plastic enclosure built to house heavy-duty electrical components in demanding industrial settings. Non-metallic corrosion-resistant enclosures protect control electronics against harsh chemicals, moisture, and impact. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Maximum Load Capacity: Enclosure 10791 N
- Number of Flange Openings: 0
- Number of Conduit Inlets: 0
- Number of Doors: 1
- Number of Rows: 0
- Cover Plate Type: Door
- Enclosure Type NEMA: Type4X
- Door Type: Single
- Impact Resistance Rating: IK10
- Power Loss: Total 113,333333333333 W
- Surface Finishing: Untreated
- Housing Material: Plastic
- Material: GRP (Glass fibre reinforced plastic)
- Cover Style: Closed
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
More info
▲| Technical | |
|---|---|
| Maximum Load Capacity | Enclosure 10791 N |
| Door(s) 7848 N | |
| Mounting Plate 10791 N | |
| Number of Flange Openings | 0 |
| Number of Conduit Inlets | 0 |
| Number of Doors | 1 |
| Number of Rows | 0 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type4X |
| Door Type | Single |
| Impact Resistance Rating | IK10 |
| Electrical | |
| Power Loss | Total 113,333333333333 W |
| Δt = 20K - Enclosures 113,333333333333 W | |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Material | GRP (Glass fibre reinforced plastic) |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 0 |
| Material Compliance | |
| RoHS Declaration | 9AJK000580 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220301 |
| REACH Declaration | 9AJK000617 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 32f455a8-ac40-4c05-b4e8-dfedc2dfc30d Belgium |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP65 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 0 |
| Product Net Width | 750 mm |
| Product Net Height | 750 mm |
| Product Net Depth / Length | 320 mm |
| Product Net Weight | 24 kg |
| Built-In Depth (t2) | 286 mm |
| Thickness | Cabinet Plate 4 mm |
| Door Plate 4 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 25.3 kg |
| Replaced Product ID (OLD) | 833012 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000580 |
| Installation | |
| Mounting Type | Floor installation |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| UNSPSC | 39121103 |
| eClass | V11.0 : 27142408 |
