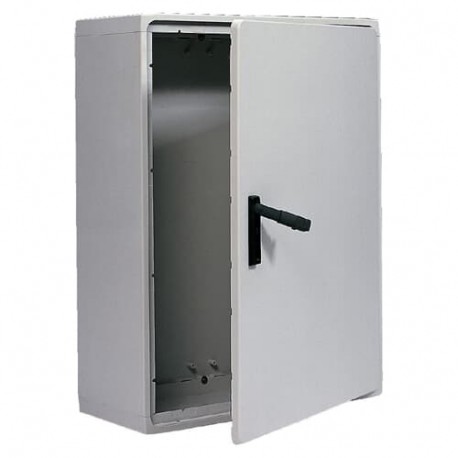

4TBP833008C0100 ABB POLYSAFE 320 (750x500x320)
4TBP833008C0100
833008
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb Polysafe 320 enclosure 4TBP833008C0100 is a robust glass-fibre reinforced plastic housing built to safeguard electrical controls in corrosive or wet settings. Heavy-duty non-metallic cabinets offer high impact resistance while protecting internal automation modules from harsh industrial elements.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Maximum Load Capacity: Enclosure 10791 N
- Number of Flange Openings: 0
- Number of Conduit Inlets: 0
- Number of Doors: 1
- Number of Rows: 0
- Cover Plate Type: Door
- Enclosure Type NEMA: Type4X
- Door Type: Single
- Impact Resistance Rating: IK10
- Power Loss: Total 80 W
- Surface Finishing: Untreated
- Housing Material: Plastic
- Material: GRP (Glass fibre reinforced plastic)
- Cover Style: Closed
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
More info
▲| Technical | |
|---|---|
| Maximum Load Capacity | Enclosure 10791 N |
| Door(s) 7848 N | |
| Mounting Plate 10791 N | |
| Number of Flange Openings | 0 |
| Number of Conduit Inlets | 0 |
| Number of Doors | 1 |
| Number of Rows | 0 |
| Cover Plate Type | Door |
| Enclosure Type NEMA | Type4X |
| Door Type | Single |
| Impact Resistance Rating | IK10 |
| Electrical | |
| Power Loss | Total 80 W |
| Δt = 20K - Enclosures 80 W | |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Material | GRP (Glass fibre reinforced plastic) |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Number of Modules | 0 |
| Material Compliance | |
| RoHS Declaration | 9AJK000580 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220301 |
| REACH Declaration | 9AJK000617 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | 32f455a8-ac40-4c05-b4e8-dfedc2dfc30d Belgium |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP65 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Width in Number of Modular Spacings | 0 |
| Product Net Width | 500 mm |
| Product Net Height | 750 mm |
| Product Net Depth / Length | 320 mm |
| Product Net Weight | 18 kg |
| Built-In Depth (t2) | 286 mm |
| Thickness | Cabinet Plate 4 mm |
| Door Plate 4 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 19 kg |
| E-Number (Norway) | 2521404 |
| Replaced Product ID (OLD) | 833008 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000580 |
| Installation | |
| Mounting Type | Floor installation |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000261 - Enclosure/cabinet (empty) |
| ETIM 10 | EC000261 - Enclosure/cabinet (empty) |
| UNSPSC | 39121103 |
| eClass | V11.0 : 27142408 |
