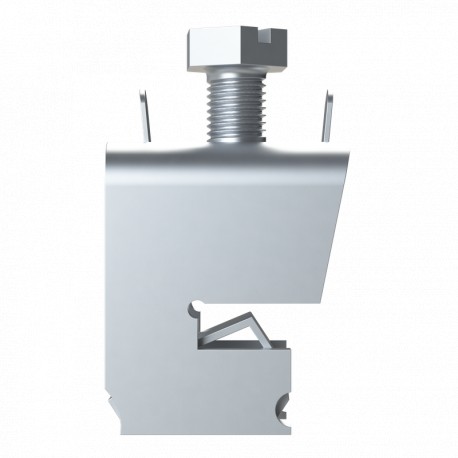

4TBO858032C0100 ABB CLEMA DERIV. BAR-CABLE KK70
4TBO858032C0100
858032
ABB
1 Pcs.
CLEMA DERIV. BAR-CABLE KK70
CABLE CLAMP 70 CU=5 KK70
Cables > Coupler for support/profile rail
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb clema deriv. bar-cable kk70 part 4TBO858032C0100 functions as an aluminum clamping bracket used to secure cable taps to main power bars. This component ensures secure electrical contact and mechanical alignment in switchgear builds.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: I-profile
- Model Number: Clamping bracket
- Accessories Available: No
- Material: Material: Aluminium
- RoHS Declaration: 9AJK000610
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20230323
- REACH Declaration: 9AJK000617
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20230911
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
- Product Net Width: 20 mm
- Product Net Height: 40 mm
- Product Net Depth / Length: 120 mm
- Product Net Weight: 0.1 kg
More info
▲| Technical | |
|---|---|
| Suitable For | I-profile |
| Model Number | Clamping bracket |
| Accessories Available | No |
| Design | |
| Material | Material: Aluminium |
| Material Compliance | |
| RoHS Declaration | 9AJK000610 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230323 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 20 mm |
| Product Net Height | 40 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.1 kg |
| Ordering | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Gross Weight | 0.7 kg |
| Replaced Product ID (OLD) | 858032 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000610 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| 9AKK108469A1514 | |
| External Classifications and Standards | |
| ETIM 9 | EC000483 - Coupler for support/profile rail |
| ETIM 10 | EC000483 - Coupler for support/profile rail |
| eClass | V11.0 : 27400521 |
