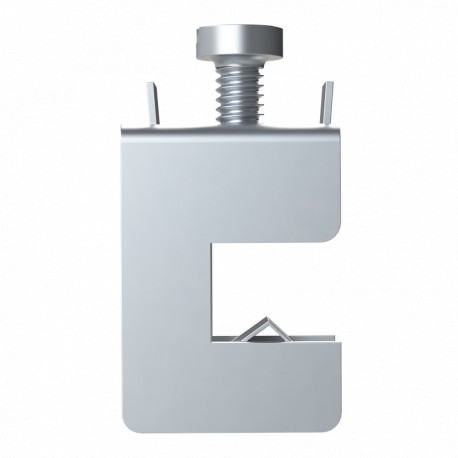

4TBO858027C0100 ABB CABLE ON BAR CLAMP 16MM2
4TBO858027C0100
858027
ABB
1 Pcs.
CABLE ON BAR CLAMP 16MM2
Cables > Coupler for support/profile rail
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb cable on bar clamp 16mm2 part 4TBO858027C0100 acts as a clamping bracket engineered to secure conductors directly to distribution bars. It enables neat and secure cable management inside electrical distribution panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: I-profile
- Model Number: Clamping bracket
- Accessories Available: No
- Material: Material: Aluminium
- RoHS Declaration: 9AJK000610
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20230323
- REACH Declaration: 9AJK000617
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20230911
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
- Product Net Width: 20 mm
- Product Net Height: 40 mm
- Product Net Depth / Length: 120 mm
- Product Net Weight: 0.1 kg
More info
▲| Technical | |
|---|---|
| Suitable For | I-profile |
| Model Number | Clamping bracket |
| Accessories Available | No |
| Design | |
| Material | Material: Aluminium |
| Material Compliance | |
| RoHS Declaration | 9AJK000610 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230323 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 20 mm |
| Product Net Height | 40 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.1 kg |
| Ordering | |
| Package Level 1 Units | box 20 piece |
| Package Level 1 Gross Weight | 0.5 kg |
| Replaced Product ID (OLD) | 858027 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000610 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| 9AKK108469A1514 | |
| External Classifications and Standards | |
| ETIM 9 | EC000483 - Coupler for support/profile rail |
| ETIM 10 | EC000483 - Coupler for support/profile rail |
| eClass | V11.0 : 27400521 |
