View larger
Images are for illustrative purposes only. Please refer to data sheet for details

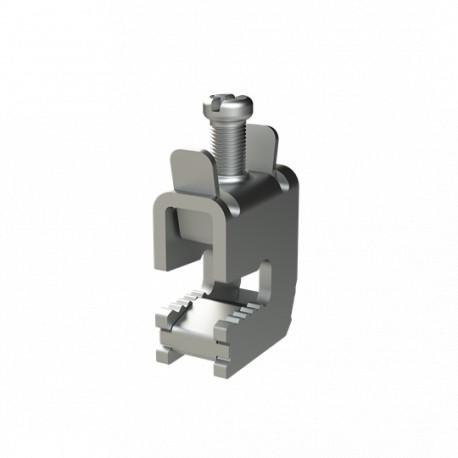

4TBO858026C0100 ABB CLEMA DERIV. BAR-CABLE KK16
4TBO858026C0100
858026
ABB
1 Pcs.
CLEMA DERIV. BAR-CABLE KK16
CABLE ON BAR CLAMP 16MM2
Automation > Busbar terminal
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Suitable For | Flat rail |
| Accessories Available | No |
| Material Compliance | |
| RoHS Declaration | 9AJK000610 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230323 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 11.5 mm |
| Product Net Height | 200 mm |
| Product Net Depth / Length | 50 mm |
| Product Net Weight | 0.1 kg |
| Ordering | |
| Package Level 1 Units | box 20 piece |
| Package Level 1 Gross Weight | 0.5 kg |
| Replaced Product ID (OLD) | 858026 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000610 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| 9AKK108469A1514 | |
| External Classifications and Standards | |
| ETIM 9 | EC000001 - Busbar terminal |
| ETIM 10 | EC000001 - Busbar terminal |
| eClass | V11.0 : 27141146 |
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 5 mm |
| Busbar width (EF007219) | 1.5 mm |
| Suitable for (EF000073) | Flat rail |
| Width clamp (EF007092) | 11.5 mm |
| Max. conductor cross section (EF004969) | 16 mm² |
| Suitable for round conductor connection (EF007258) | No |
| Suitable for sector conductor connection (EF007260) | No |
| Suitable for strip conductor connection (EF007242) | Yes |
