View larger
Images are for illustrative purposes only. Please refer to data sheet for details

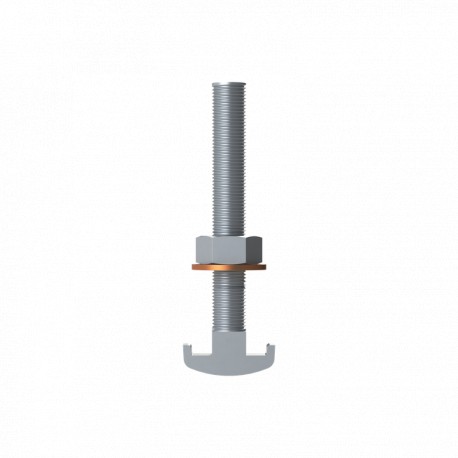

4TBO858010C0100 ABB SCREW T BHS5-80(M10x80)
4TBO858010C0100
858010
ABB
1 Pcs.
SCREW T BHS5-80(M10x80)
HOOK-ON BOLT
Cables > Coupler for support/profile rail
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Suitable For | I-profile |
| Model Number | Clamping bracket |
| Number of Poles | 1P |
| Accessory Type | Fastening parts/-set |
| Connection Type | Housing / Housing |
| Accessories Available | No |
| Design | |
| Material | Aluminium |
| Material Compliance | |
| RoHS Declaration | 9AJK000610 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20230323 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 20 mm |
| Product Net Height | 40 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.1 kg |
| Ordering | |
| Package Level 1 Units | box 10 piece |
| Package Level 1 Gross Weight | 0.8 kg |
| Replaced Product ID (OLD) | 858010 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000610 |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| 9AKK108469A1514 | |
| External Classifications and Standards | |
| ETIM 9 | EC000713 - Busbar coupler |
| ETIM 10 | EC000713 - Busbar coupler |
| UNSPSC | 39121321 |
| eClass | V11.0 : 27400521 |
| IDEA Granular Category Code (IGCC) | 4465 >> Enclosure General Accessories |
| Feature Name | Feature Value |
|---|---|
| Suitable for (EF000073) | I-profile |
| Model (EF000010) | Clamping bracket |
| Material quality (EF001257) | Other |
