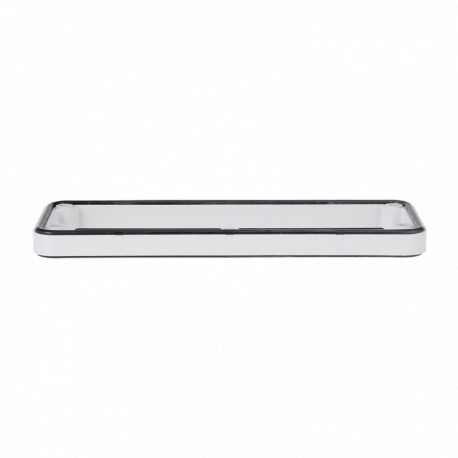

ABB 4TBO856107C0100 4TBO856107C0100 ABB APO. COUPLING FRAME 300.RAL7035 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBO856107C0100 ABB APO. COUPLING FRAME 300.RAL7035

4TBO856107C0100

856107

ABB

1 Pcs.

APO. COUPLING FRAME 300.RAL7035 APO coupling frame 300 RAL7035

Automation > Spacer frame (enclosure/cabinet)
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Modifying enclosure dimensions or aligning modular sections is easily managed with the ABB APO. COUPLING FRAME 300.RAL7035. This accessory provides precise spacing and structural continuity across joined industrial cabinet systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessories Available: No
  • REACH Declaration: 9AJK000617
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20230911
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope
  • Product Net Width: 300 mm
  • Product Net Height: 130 mm
  • Product Net Depth / Length: 20 mm
  • Product Net Weight: 0.2 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Gross Weight: 0.2 kg
  • Replaced Product ID (OLD): 856107
  • Data Sheet, Technical Information: 9AKK107680A5160
  • ETIM 9: EC002528 - Spacer frame (enclosure/cabinet)
  • ETIM 10: EC002528 - Spacer frame (enclosure/cabinet)

More info

▲
Technical
Accessories AvailableNo
Material Compliance
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width300 mm
Product Net Height130 mm
Product Net Depth / Length20 mm
Product Net Weight0.2 kg
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight0.2 kg
Replaced Product ID (OLD)856107
Certificates and Declarations
Installation
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC002528 - Spacer frame (enclosure/cabinet)
ETIM 10EC002528 - Spacer frame (enclosure/cabinet)
eClassV11.0 : 27182302
