View larger
Images are for illustrative purposes only. Please refer to data sheet for details

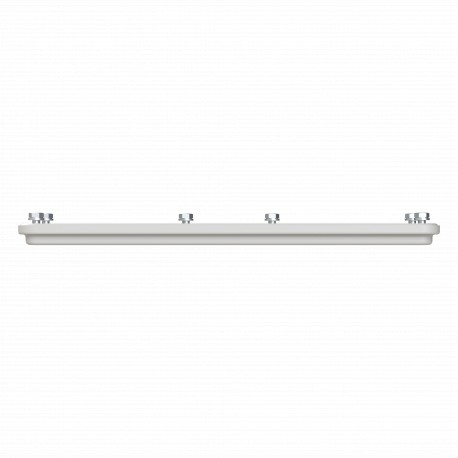

4TBO856105C0100 ABB APO LID FULL CLOSURE L370
4TBO856105C0100
856105
ABB
1 Pcs.
APO LID FULL CLOSURE L370
APO flange 370 RAL7035 smooth
Automation > Gland plate for small distribution boards/switchgear cabinets
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Model Number | Blind |
| Number of Connection Holes | 0 |
| Product Type | Straight |
| Thread Type | Metric |
| Accessories Available | No |
| Design | |
| Surface Finishing | Untreated |
| Material | Plastic |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 370 mm |
| Product Net Height | 98 mm |
| Product Net Depth / Length | 13.5 mm |
| Product Net Weight | 0.3 kg |
| Thickness | 3 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.3 kg |
| Replaced Product ID (OLD) | 856105 |
| Certificates and Declarations | |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000211 - Gland plate for enclosure/cabinet |
| ETIM 10 | EC000211 - Gland plate for enclosure/cabinet |
| eClass | V11.0 : 27142421 |
