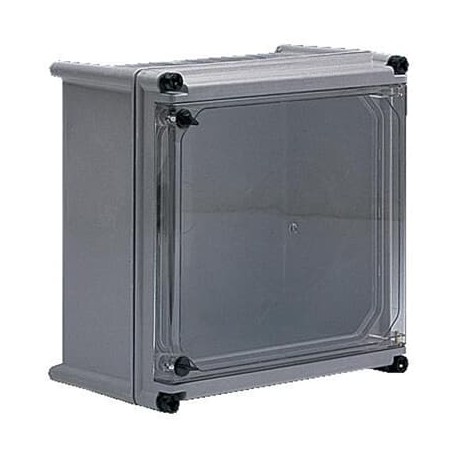

4TBO856069C0100 ABB APO 51 TRANSPARENT PIVOTING LID
4TBO856069C0100
856069
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
4TBO856069C0100 ABB APO 51 TRANSPARENT PIVOTING LID is an enclosure accessory designed to provide visual inspection access while protecting internal electrical equipment from dust and moisture. Such lids are commonly mounted onto junction boxes and distribution panels to allow monitoring without opening the housing.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of Conduit Inlets: 0
- Cover Plate Type: Cover
- Enclosure Type NEMA: Type12
- Door Type: Single
- Door Surface Finishing: Transparent
- Accessories Available: Yes
- Surface Finishing: Untreated
- Housing Material: Plastic
- Cover Style: Closed
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
- RoHS Declaration: 9AJK000581
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20220616
- REACH Declaration: 9AJK000617
- REACH Information: False - does not contain substances > 0.1 mass percentage
More info
▲| Technical | |
|---|---|
| Number of Conduit Inlets | 0 |
| Cover Plate Type | Cover |
| Enclosure Type NEMA | Type12 |
| Door Type | Single |
| Door Surface Finishing | Transparent |
| Accessories Available | Yes |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 9AJK000581 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220616 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP67 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Product Net Width | 302 mm |
| Product Net Height | 175 mm |
| Product Net Depth / Length | 488 mm |
| Product Net Weight | 3.8 kg |
| Built-In Depth (t2) | 140 mm |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 2.5 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 4 kg |
| Replaced Product ID (OLD) | 856069 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000581 |
| Installation | |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
