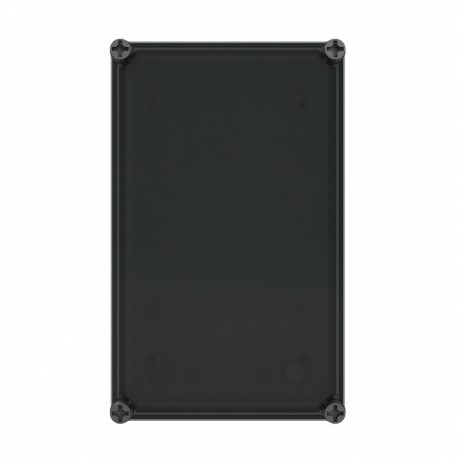

ABB 4TBO856058C0100 4TBO856058C0100 ABB APO 31 (transparent lid) RAL7035 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBO856058C0100 ABB APO 31 (transparent lid) RAL7035

4TBO856058C0100

856058

ABB

1 Pcs.

APO 31 (transparent lid) RAL7035 APO 31 Box (transparent cover) RAL7035

Automation > Empty cabinet
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 4TBO856058C0100 ABB APO 31 is a plastic industrial enclosure featuring a transparent lid for convenient visual inspection of housed electrical components. Sealed protective boxes shield internal terminal connections, controllers, and meters from dust and moisture intrusion.

Specific pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of Conduit Inlets: 0
  • Cover Plate Type: Cover
  • Enclosure Type NEMA: Type12
  • Door Type: Single
  • Door Surface Finishing: Transparent
  • Accessories Available: Yes
  • Impact Resistance Rating: IK08
  • Surface Finishing: Untreated
  • Housing Material: Plastic
  • Cover Style: Closed
  • RAL Number: RAL 7035 - Light Grey
  • Color: Grey
  • RoHS Declaration: 9AJK000581
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Date: 20220616
  • REACH Declaration: 9AJK000617

More info

▲
Technical
Number of Conduit Inlets0
Cover Plate TypeCover
Enclosure Type NEMAType12
Door TypeSingle
Door Surface FinishingTransparent
Accessories AvailableYes
Impact Resistance RatingIK08
Design
Surface FinishingUntreated
Housing MaterialPlastic
Cover StyleClosed
RAL NumberRAL 7035 - Light Grey
ColorGrey
Material Compliance
RoHS Declaration9AJK000581
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20220616
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIPac7844a7-498b-4ffa-913e-9deead7e2883 Belgium
WEEE CategoryProduct Not in WEEE Scope
Environmental
Degree of ProtectionIP66
Protection ClassIsolated (Class II)
Dimensions
Product Net Width186 mm
Product Net Height175 mm
Product Net Depth / Length302 mm
Product Net Weight1.6 kg
Built-In Depth (t2)140 mm
ThicknessCabinet Plate 3.5 mm
Door Plate 3 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight1.7 kg
Replaced Product ID (OLD)856058
Certificates and Declarations
Declaration of Conformity - CE9AJK000581
Installation
Mounting TypeSurface mounted
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC000058 - Empty cabinet
ETIM 10EC000058 - Empty cabinet
eClassV11.0 : 27142408
