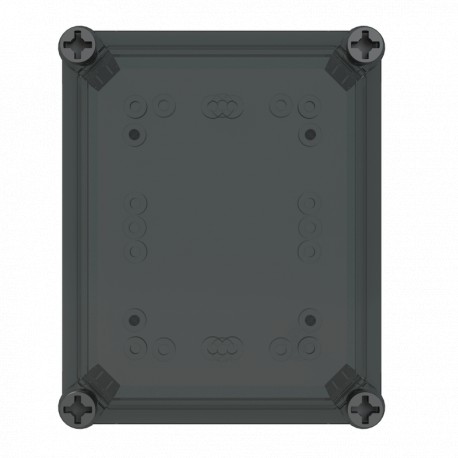

4TBO856057C0100 ABB APO 1 Box (transparent cover) RAL7035
4TBO856057C0100
856057
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb box 4TBO856057C0100 is an industrial plastic enclosure featuring a transparent cover, utilized for housing monitoring devices, meters, and control components while permitting clear visual checks. Protective enclosures shield delicate electronics from workshop hazards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Conduit Inlets: 0
- Cover Plate Type: Cover
- Enclosure Type NEMA: Type12
- Door Type: Single
- Door Surface Finishing: Transparent
- Accessories Available: Yes
- Impact Resistance Rating: IK08
- Surface Finishing: Untreated
- Housing Material: Plastic
- Cover Style: Closed
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
- RoHS Declaration: 9AJK000581
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20220616
- REACH Declaration: 9AJK000617
More info
▲| Technical | |
|---|---|
| Number of Conduit Inlets | 0 |
| Cover Plate Type | Cover |
| Enclosure Type NEMA | Type12 |
| Door Type | Single |
| Door Surface Finishing | Transparent |
| Accessories Available | Yes |
| Impact Resistance Rating | IK08 |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 9AJK000581 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220616 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP66 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Product Net Width | 151 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 186 mm |
| Product Net Weight | 0.9 kg |
| Built-In Depth (t2) | 95 mm |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 3 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.9 kg |
| Replaced Product ID (OLD) | 856057 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000581 |
| Installation | |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
