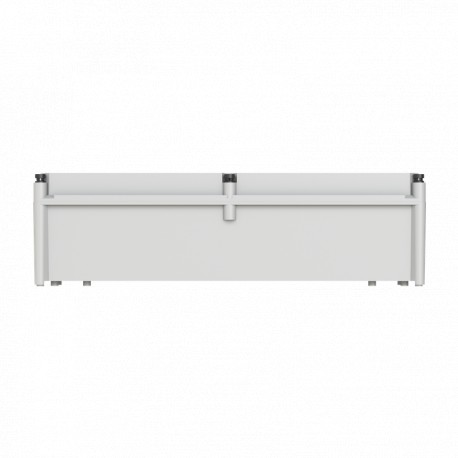

4TBO856056C0100 ABB APO 12 FULL GREY COVER
4TBO856056C0100
856056
ABB
1 Pcs.
APO 12 - FULL GREY COVER
APO 12 BOX (GREY COVER) RAL7035
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Abb, part number 4TBO856056C0100 designates an APO 12 Full Grey Cover enclosure component. Covers and lids seal modular enclosure bases to maintain environmental protection ratings for internal electrical components.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Number of Conduit Inlets: 0
- Cover Plate Type: Cover
- Enclosure Type NEMA: Type12
- Door Type: Single
- Accessories Available: Yes
- Impact Resistance Rating: IK08
- Surface Finishing: Untreated
- Housing Material: Plastic
- Cover Style: Closed
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
- RoHS Declaration: 9AJK000581
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20220616
- REACH Declaration: 9AJK000617
- REACH Information: False - does not contain substances > 0.1 mass percentage
More info
▲| Technical | |
|---|---|
| Number of Conduit Inlets | 0 |
| Cover Plate Type | Cover |
| Enclosure Type NEMA | Type12 |
| Door Type | Single |
| Accessories Available | Yes |
| Impact Resistance Rating | IK08 |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 9AJK000581 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220616 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP67 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Product Net Width | 603 mm |
| Product Net Height | 175 mm |
| Product Net Depth / Length | 603 mm |
| Product Net Weight | 7.8 kg |
| Built-In Depth (t2) | 140 mm |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 3 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 8.2 kg |
| Replaced Product ID (OLD) | 856056 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000581 |
| Installation | |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
