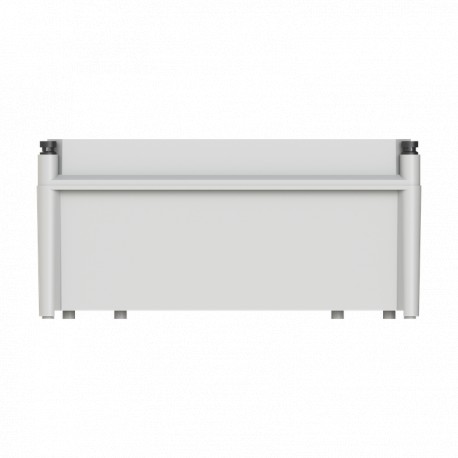

ABB 4TBO856055C0100 4TBO856055C0100 ABB APO 11 FULL GREY LID View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBO856055C0100 ABB APO 11 FULL GREY LID

4TBO856055C0100

856055

ABB

1 Pcs.

APO 11 - FULL GREY LID APO 11 BOX (GREY COVER) RAL7035;APO 11 Box (grey cover) RAL7035

Automation > Empty cabinet
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 4TBO856055C0100 ABB APO 11 FULL GREY LID functions as a protective housing designed to shield sensitive electrical equipment, terminal blocks, and control devices from environmental hazards in industrial setups. Enclosures of this classification are routinely deployed across commercial and manufacturing facilities to maintain secure, organized, and compliant junction points for internal wiring networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Surface mounted
  • Type of covering (EF000339): Cover
  • Cover model (EF009212): Closed
  • Type of door (EF004464): Single
  • Transparent cover/door (EF006244): No
  • With lock (EF006306): No
  • Height (EF000040): 175 mm
  • Width (EF000008): 372 mm
  • Depth (EF000049): 603 mm
  • Built-in depth (EF000218): 140 mm
  • Inner depth (EF001131): 120 mm
  • Material plate thickness cabinet (EF009170): 3.5 mm
  • Material plate thickness door/cover (EF009171): 3 mm
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • Extension possible (EF001088): Yes

More info

▲

b'

General Information

Extended Product Type:
AP11P
Product ID:
4TBO856055C0100
EAN:
5411815248900
Catalog Description:
APO 11 Box  (grey cover) RAL7035
Long Description:
APO 11 BOX  (GREY COVER) RAL7035;APO 11 Box  (grey cover) RAL7035
\n

Ordering

EAN:
5411815248900
Minimum Order Quantity:
1 piece
Customs Tariff Number:
8538100090

Dimensions

Product Net Width:
372 mm
Product Net Height:
603 mm
Product Net Depth / Length:
175 mm
Product Net Weight:
5.08 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
372 mm
Package Level 1 Height:
175 mm
Package Level 1 Depth / Length:
603 mm
Package Level 1 Gross Weight:
5.08 kg
Package Level 1 EAN:
5411815248900

Additional Information

Color:
Grey
Cover Plate Type:
Cover
Degree of Protection:
IP67
Housing Material:
Plastic
Mounting Type:
Surface mounted (plaster)
Product Main Type:
APO
Product Name:
APO 11 Box  (grey cover) RAL7035 ; AP11P
Replaced Product ID (OLD):
856055
Surface Finishing:
Untreated

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\nNo document needed
Declaration of Conformity - CE:\nNo declaration needed
Instructions and Manuals:\nNo document needed

Classifications

ETIM 7:
EC000058 - Empty cabinet
WEEE Category:
Product Not in WEEE Scope
\n
'
