> ABB > Boxes and cabinets > 856054

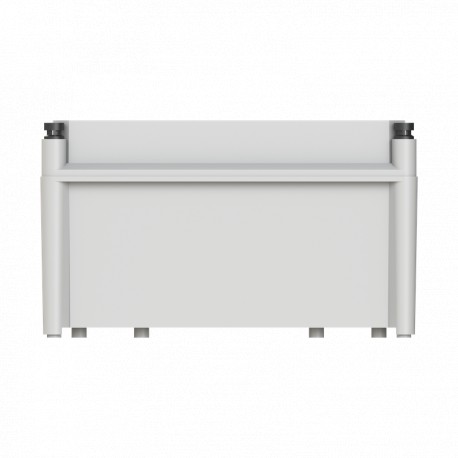

ABB 4TBO856054C0100 4TBO856054C0100 ABB APO 61 FULL GREY LID View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBO856054C0100 ABB APO 61 FULL GREY LID

4TBO856054C0100

856054

ABB

1 Pcs.

APO 61 - FULL GREY LID APO 61 BOX (GREY COVER) RAL7035;APO 61 Box (grey cover) RAL7035

Automation > Empty cabinet
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
AP61P
Product ID:
4TBO856054C0100
EAN:
5411815248894
Catalog Description:
APO 61 Box  (grey cover) RAL7035
Long Description:
APO 61 BOX  (GREY COVER) RAL7035;APO 61 Box  (grey cover) RAL7035
\n

Ordering

EAN:
5411815248894
Minimum Order Quantity:
1 piece
Customs Tariff Number:
8538100090

Dimensions

Product Net Width:
302 mm
Product Net Height:
603 mm
Product Net Depth / Length:
175 mm
Product Net Weight:
4.55 kg

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
302 mm
Package Level 1 Height:
175 mm
Package Level 1 Depth / Length:
603 mm
Package Level 1 Gross Weight:
4.55 kg
Package Level 1 EAN:
5411815248894

Additional Information

Color:
Grey
Cover Plate Type:
Cover
Degree of Protection:
IP67
Housing Material:
Plastic
Mounting Type:
Surface mounted (plaster)
Product Main Type:
APO
Product Name:
APO 61 Box  (grey cover) RAL7035 ; AP61P
Replaced Product ID (OLD):856054
Surface Finishing:
Untreated

Certificates and Declarations (Document Number)

Data Sheet, Technical Information:\nNo document needed
Declaration of Conformity - CE:\nNo declaration needed
Instructions and Manuals:\nNo document needed

Classifications

ETIM 7:
EC000058 - Empty cabinet
WEEE Category:
Product Not in WEEE Scope
\n
'

ETIM for 4TBO856054C0100 Distribution boards (EC000058)
Feature Name Feature Value
Mounting method (EF000003) Surface mounted
Type of covering (EF000339) Cover
Cover model (EF009212) Closed
Type of door (EF004464) Single
Transparent cover/door (EF006244) No
With lock (EF006306) No
Height (EF000040) 175 mm
Width (EF000008) 302 mm
Depth (EF000049) 603 mm
Built-in depth (EF000218) 140 mm
Inner depth (EF001131) 120 mm
Material plate thickness cabinet (EF009170) 3.5 mm
Material plate thickness door/cover (EF009171) 3 mm
Colour (EF000007) Grey
RAL-number (EF000116) 7035
Extension possible (EF001088) Yes
Number of conduit inlets (EF000437) 0
Housing material (EF001596) Plastic
Surface protection (EF000139) Untreated
With mounting plate (EF000118) No
Suitable for outdoor use (EF003532) Yes
Suitable for lightning protection (EF007800) No
Degree of protection (IP) (EF005474) IP67
Degree of protection (NEMA) (EF011959) 12
Protection class according to IEC 61140 (EF000004) II
Impact strength (EF004293) IK10
Circuit integrity (EF001613) None
