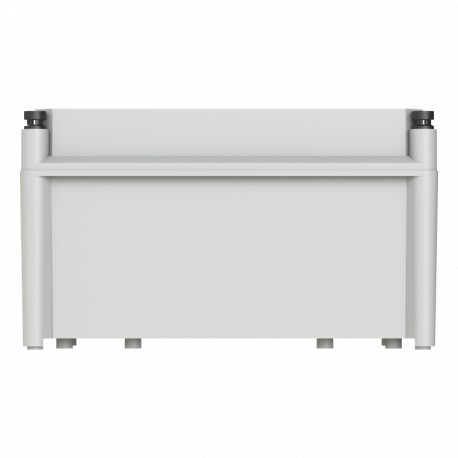

4TBO856053C0100 ABB APO 81 FULL CAP RAL7035
4TBO856053C0100
856053
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 4TBO856053C0100 ABB APO 81 FULL CAP RAL7035 is an empty industrial cabinet designed to securely house electrical distribution hardware and control modules in demanding environments. Protective enclosures prevent dust and water from damaging internal electronics while maintaining neat facility layouts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Accessories Available: Yes
- Built-In Depth ( t 2 ): 140 mm
- CAD Dimensional Drawing: 4TBO856053C0100STP
- CN8: 85381000
- Color: Grey
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- Country or Territory of Origin: Poland
- Cover Plate Type: Cover
- Cover Style: Closed
- Customs Tariff Number: 85381000
- Data Sheet, Technical Information: 9AKK107680A5160
- Declaration of Conformity - CE: 9AJK000581
- Degree of Protection: IP67
- Door Type: Single
- EAN: 5411815248887
- ETIM 10: EC000058 - Empty cabinet
More info
▲| Additional Information | |
|---|---|
| Accessories Available | Yes |
| Built-In Depth (t2) | 140 mm |
| CAD Dimensional Drawing | 4TBO856053C0100STP |
| CN8 | 85381000 |
| Color | Grey |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Poland |
| Cover Plate Type | Cover |
| Cover Style | Closed |
| Customs Tariff Number | 85381000 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| Declaration of Conformity - CE | 9AJK000581 |
| Degree of Protection | IP67 |
| Door Type | Single |
| EAN | 5411815248887 |
| ETIM 10 | EC000058 - Empty cabinet |
| ETIM 7 | EC000058 - Empty cabinet |
| ETIM 8 | EC000058 - Empty cabinet |
| ETIM 9 | EC000058 - Empty cabinet |
| EU Data Act Applicability and Compliance | Not Applicable |
| Enclosure Type NEMA | Type12 |
| Gross Weight | 4.6 kg |
| Housing Material | Plastic |
| Impact Resistance Rating | IK08 |
| Interior Depth | 120 mm |
| Invoice Description | APO 81 BOX (GREY COVER) RAL7035 |
| Minimum Order Quantity | BX 1 piece |
| Mounting Type | Surface mounted |
| Number of Conduit Inlets | 0 |
| Package Level 1 Depth / Length | 560 mm |
| Package Level 1 EAN | 5411815248887 |
| Package Level 1 Gross Weight | 4.6 kg |
| Package Level 1 Height | 262 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 3 Depth / Length | 1200 mm |
| Package Level 3 Gross Weight | 181.1 kg |
| Package Level 3 Height | 1500 mm |
| Package Level 3 Units | pallet (lift) 40 piece |
| Package Level 3 Width | 800 mm |
| Product Main Type | APO |
| Product Name | APO 81 BOX (GREY COVER) RAL7035 ; AP81P |
| Product Net Depth / Length | 558 mm |
| Product Net Height | 175 mm |
| Product Net Weight | 4.3 kg |
| Product Net Width | 302 mm |
| Protection Class | Isolated (Class II) |
| RAL Number | RAL 7035 - Light Grey |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 856053 |
| RoHS Date | 20220616 |
| RoHS Declaration | 9AJK000581 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Selling Unit of Measure | piece |
| Short Description | APO 81 BOX (GREY COVER) RAL7035 |
| Surface Finishing | Untreated |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 3 mm | |
| WEEE Category | Product Not in WEEE Scope |
| eClass | V11.0 : 27142408 |
