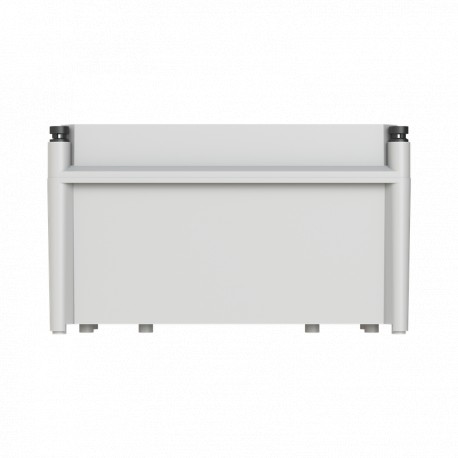

4TBO856050C0100 ABB APO 41 BOX with FULL GREY LID. 7035
4TBO856050C0100
856050
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Safeguarding electrical control equipment in wet or dusty locations is the purpose of this ABB APO 41 box with a full grey lid (4TBO856050C0100). Industrial enclosures of this grade ensure reliable weatherproofing and mechanical protection for internal components.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Accessories Available: Yes
- Built-In Depth ( t 2 ): 140 mm
- CAD Dimensional Drawing: 4TBO856050C0100STP
- CN8: 85381000
- Color: Grey
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- Country or Territory of Origin: Poland
- Cover Plate Type: Cover
- Cover Style: Closed
- Customs Tariff Number: 85381000
- Data Sheet, Technical Information: 9AKK107680A5160
- Declaration of Conformity - CE: 9AJK000581
- Degree of Protection: IP67
- Door Type: Single
- EAN: 5411815248856
- ETIM 10: EC000058 - Empty cabinet
More info
▲| Additional Information | |
|---|---|
| Accessories Available | Yes |
| Built-In Depth (t2) | 140 mm |
| CAD Dimensional Drawing | 4TBO856050C0100STP |
| CN8 | 85381000 |
| Color | Grey |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Poland |
| Cover Plate Type | Cover |
| Cover Style | Closed |
| Customs Tariff Number | 85381000 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| Declaration of Conformity - CE | 9AJK000581 |
| Degree of Protection | IP67 |
| Door Type | Single |
| EAN | 5411815248856 |
| ETIM 10 | EC000058 - Empty cabinet |
| ETIM 7 | EC000058 - Empty cabinet |
| ETIM 8 | EC000058 - Empty cabinet |
| ETIM 9 | EC000058 - Empty cabinet |
| EU Data Act Applicability and Compliance | Not Applicable |
| Enclosure Type NEMA | Type12 |
| Gross Weight | 2.6 kg |
| Housing Material | Plastic |
| Impact Resistance Rating | IK08 |
| Interior Depth | 120 mm |
| Invoice Description | APO 41 Box (grey cover) RAL7035 |
| Minimum Order Quantity | BX 1 piece |
| Mounting Type | Surface mounted |
| Number of Conduit Inlets | 0 |
| Package Level 1 Depth / Length | 305 mm |
| Package Level 1 EAN | 5411815248856 |
| Package Level 1 Gross Weight | 2.6 kg |
| Package Level 1 Height | 185 mm |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 3 Depth / Length | 120 mm |
| Package Level 3 Gross Weight | 129.5 kg |
| Package Level 3 Height | 205 mm |
| Package Level 3 Units | box 72 piece |
| Package Level 3 Width | 80 mm |
| Product Main Type | APO |
| Product Name | APO 41 Box (grey cover) RAL7035 ; AP41P |
| Product Net Depth / Length | 302 mm |
| Product Net Height | 175 mm |
| Product Net Weight | 2.5 kg |
| Product Net Width | 302 mm |
| Protection Class | Isolated (Class II) |
| RAL Number | RAL 7035 - Light Grey |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 856050 |
| RoHS Date | 20220616 |
| RoHS Declaration | 9AJK000581 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Selling Unit of Measure | piece |
| Short Description | APO 41 BOX (GREY COVER) RAL7035 |
| Surface Finishing | Untreated |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 3 mm | |
| WEEE Category | Product Not in WEEE Scope |
| eClass | V11.0 : 27142408 |
| Product Keywords | Not Available |
