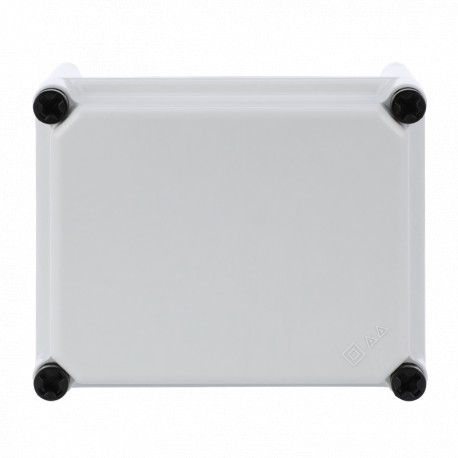

4TBO856048C0100 ABB APO 1 modular polyester boxes 185x150x130 opaque polyester cover IP67
4TBO856048C0100
856048
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB apo 1 modular polyester boxes 185x150x130 opaque polyester cover ip67 is a protective thermoplastic enclosure utilized for housing electrical junction points, terminal blocks, and control devices in harsh outdoor or industrial settings. Molded polyester construction provides superior chemical resistance and dependable insulation properties against environmental hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Conduit Inlets: 0
- Cover Plate Type: Cover
- Enclosure Type NEMA: Type12
- Door Type: Single
- Accessories Available: Yes
- Impact Resistance Rating: IK08
- Surface Finishing: Untreated
- Housing Material: Plastic
- Cover Style: Closed
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
- RoHS Declaration: 9AJK000581
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date: 20220616
- REACH Declaration: 9AJK000617
- REACH Information: False - does not contain substances > 0.1 mass percentage
More info
▲| Technical | |
|---|---|
| Number of Conduit Inlets | 0 |
| Cover Plate Type | Cover |
| Enclosure Type NEMA | Type12 |
| Door Type | Single |
| Accessories Available | Yes |
| Impact Resistance Rating | IK08 |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| Cover Style | Closed |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| RoHS Declaration | 9AJK000581 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20220616 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP67 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Product Net Width | 151 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 186 mm |
| Product Net Weight | 1.1 kg |
| Built-In Depth (t2) | 95 mm |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 3 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.2 kg |
| Replaced Product ID (OLD) | 856048 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AJK000581 |
| Installation | |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
