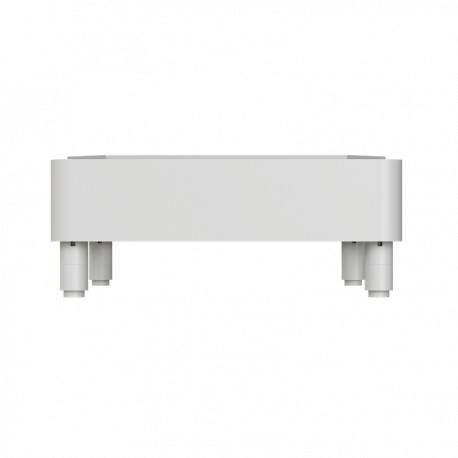

ABB 4TBO856040C0100 4TBO856040C0100 ABB APO 1 Depth ext.-frame RAL7035 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBO856040C0100 ABB APO 1 Depth ext.-frame RAL7035

4TBO856040C0100

856040

ABB

1 Pcs.

APO 1 Depth ext.-frame RAL7035 APO 1 DEPTH EXT.-FRAME RAL7035

Automation > Spacer frame (enclosure/cabinet)
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb depth extension frame APO 1, part number 4TBO856040C0100, allows technicians to extend the usable internal depth of standard industrial enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessories Available: No
  • REACH Declaration: 9AJK000617
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20230911
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope
  • Product Net Width: 151 mm
  • Product Net Height: 37 mm
  • Product Net Depth / Length: 186 mm
  • Product Net Weight: 0.5 kg
  • Package Level 1 Units: box 4 piece
  • Package Level 1 Gross Weight: 1.8 kg
  • Replaced Product ID (OLD): 856040
  • Data Sheet, Technical Information: 9AKK107680A5160
  • ETIM 9: EC002528 - Spacer frame (enclosure/cabinet)
  • ETIM 10: EC002528 - Spacer frame (enclosure/cabinet)

More info

▲
Technical
Accessories AvailableNo
Material Compliance
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width151 mm
Product Net Height37 mm
Product Net Depth / Length186 mm
Product Net Weight0.5 kg
Ordering
Package Level 1 Unitsbox 4 piece
Package Level 1 Gross Weight1.8 kg
Replaced Product ID (OLD)856040
Certificates and Declarations
Installation
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC002528 - Spacer frame (enclosure/cabinet)
ETIM 10EC002528 - Spacer frame (enclosure/cabinet)
eClassV11.0 : 27182302

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
