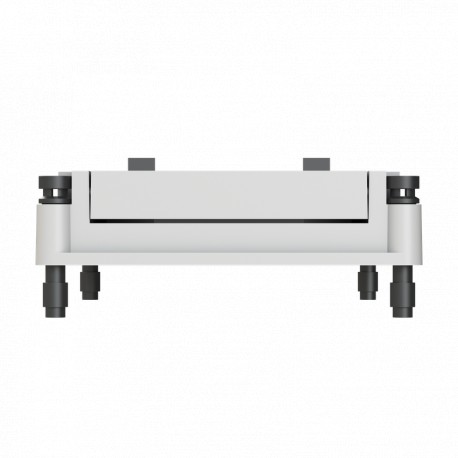

ABB 4TBO856034C0100 4TBO856034C0100 ABB APO 31 TRANSP CAP. PIVOT. 300x185x45 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBO856034C0100 ABB APO 31 TRANSP CAP. PIVOT. 300x185x45

4TBO856034C0100

856034

ABB

1 Pcs.

APO 31 TRANSP CAP. PIVOT. 300x185x45 APO 31 Cover (hinged transp.) RAL7035

Automation > Cover for distribution board
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing visual inspection access with environmental shielding, a 4TBO856034C0100 ABB APO 31 TRANSP CAP. PIVOT. 300x185x45 acts as a hinged transparent cover for industrial control equipment. Pivot caps and viewing windows allow operators to monitor meters and indicators without opening the main enclosure door.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Accessories Available: No
  • Material: Plastic
  • Color: Grey
  • REACH Declaration: 9AJK000617
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20230911
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • SCIP: ffb047b0-f5fd-46bf-a375-c52be42f1f37 Belgium
  • WEEE Category: Product Not in WEEE Scope
  • Degree of Protection: IP66
  • Product Net Width: 186 mm
  • Product Net Height: 45 mm
  • Product Net Depth / Length: 302 mm
  • Product Net Weight: 0.8 kg
  • Package Level 1 Units: box 4 piece
  • Package Level 1 Gross Weight: 3.2 kg

More info

▲
Technical
Accessories AvailableNo
Design
MaterialPlastic
ColorGrey
Material Compliance
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
SCIPffb047b0-f5fd-46bf-a375-c52be42f1f37 Belgium
WEEE CategoryProduct Not in WEEE Scope
Environmental
Degree of ProtectionIP66
Dimensions
Product Net Width186 mm
Product Net Height45 mm
Product Net Depth / Length302 mm
Product Net Weight0.8 kg
Ordering
Package Level 1 Unitsbox 4 piece
Package Level 1 Gross Weight3.2 kg
Replaced Product ID (OLD)856034
Certificates and Declarations
Installation
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC000775 - Cover for distribution board
ETIM 10EC000775 - Cover for distribution board
eClassV11.0 : 27142414
