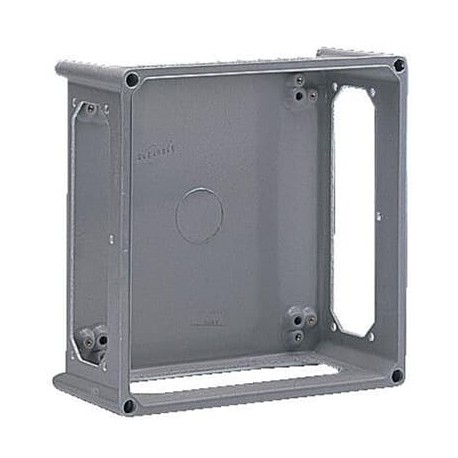

4TBO856019C0100 ABB APO 71 Base 4 open sides RAL7035
4TBO856019C0100
856019
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 4TBO856019C0100 ABB APO 71 Base 4 open sides RAL7035 functions as a durable base enclosure element used to route and manage heavy cable entries for modular industrial distribution systems. Enclosures of this classification offer high ingress protection to keep internal wiring secure in challenging facility conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of Flange Openings: 4
- Number of Conduit Inlets: 0
- Cover Plate Type: Optional
- Enclosure Type NEMA: Type12
- Door Type: Without Door
- Accessories Available: Yes
- Surface Finishing: Untreated
- Housing Material: Plastic
- RAL Number: RAL 7035 - Light Grey
- Color: Grey
- REACH Declaration: 9AJK000617
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20230911
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- WEEE Category: Product Not in WEEE Scope
- Degree of Protection: IP67
More info
▲| Technical | |
|---|---|
| Number of Flange Openings | 4 |
| Number of Conduit Inlets | 0 |
| Cover Plate Type | Optional |
| Enclosure Type NEMA | Type12 |
| Door Type | Without Door |
| Accessories Available | Yes |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP67 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Product Net Width | 302 mm |
| Product Net Height | 131 mm |
| Product Net Depth / Length | 372 mm |
| Product Net Weight | 0.1 kg |
| Built-In Depth (t2) | 120 mm |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 3 mm | |
| Ordering | |
| Package Level 1 Units | box 4 piece |
| Package Level 1 Gross Weight | 0.4 kg |
| Replaced Product ID (OLD) | 856019 |
| Certificates and Declarations | |
| Installation | |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
