View larger
Images are for illustrative purposes only. Please refer to data sheet for details

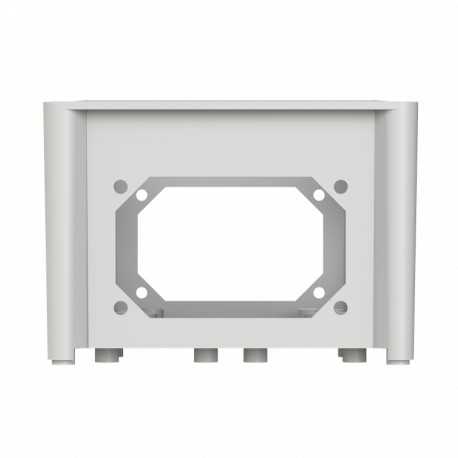

4TBO856018C0100 ABB APO 41 Base 4 open sides RAL7035
4TBO856018C0100
856018
ABB
1 Pcs.
APO 41 Base 4 open sides RAL7035
APO 41 BASE 4 OPEN SIDES RAL7035
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Flange Openings | 4 |
| Number of Conduit Inlets | 0 |
| Cover Plate Type | Optional |
| Enclosure Type NEMA | Type12 |
| Door Type | Without Door |
| Accessories Available | Yes |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP67 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Product Net Width | 302 mm |
| Product Net Height | 131 mm |
| Product Net Depth / Length | 302 mm |
| Product Net Weight | 1.2 kg |
| Built-In Depth (t2) | 140 mm |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 3 mm | |
| Ordering | |
| Package Level 1 Units | box 4 piece |
| Package Level 1 Gross Weight | 4.8 kg |
| Replaced Product ID (OLD) | 856018 |
| Certificates and Declarations | |
| Installation | |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
