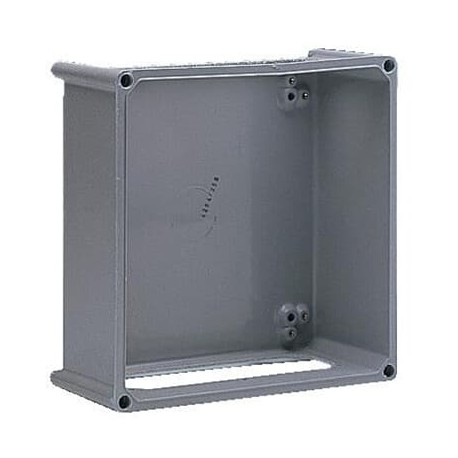

ABB 4TBO856013C0100 4TBO856013C0100 ABB APO 81 BASE 2 OPEN WALLS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBO856013C0100 ABB APO 81 BASE 2 OPEN WALLS

4TBO856013C0100

856013

ABB

1 Pcs.

APO 81 - BASE 2 OPEN WALLS APO 81 BASE 2 OPEN SIDES RAL7035

Automation > Empty cabinet
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A plastic ABB APO 81 base 2 open walls (part number 4TBO856013C0100) serves as a foundational mounting structure for electrical distribution boards and control panel assemblies, housing internal components securely. Such enclosures are widely deployed in industrial facilities to organize automation hardware and safeguard connections against dust and moisture.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of Flange Openings: 2
  • Number of Conduit Inlets: 0
  • Cover Plate Type: Optional
  • Enclosure Type NEMA: Type12
  • Door Type: Without Door
  • Accessories Available: Yes
  • Surface Finishing: Untreated
  • Housing Material: Plastic
  • RAL Number: RAL 7035 - Light Grey
  • Color: Grey
  • REACH Declaration: 9AJK000617
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20230911
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • WEEE Category: Product Not in WEEE Scope
  • Degree of Protection: IP67

More info

▲
Technical
Number of Flange Openings2
Number of Conduit Inlets0
Cover Plate TypeOptional
Enclosure Type NEMAType12
Door TypeWithout Door
Accessories AvailableYes
Design
Surface FinishingUntreated
Housing MaterialPlastic
RAL NumberRAL 7035 - Light Grey
ColorGrey
Material Compliance
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20230911
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Environmental
Degree of ProtectionIP67
Protection ClassIsolated (Class II)
Dimensions
Product Net Width302 mm
Product Net Height131 mm
Product Net Depth / Length558 mm
Product Net Weight2.6 kg
Built-In Depth (t2)140 mm
ThicknessCabinet Plate 3.5 mm
Door Plate 3 mm
Ordering
Package Level 1 Unitsbox 2 piece
Package Level 1 Gross Weight5.4 kg
Replaced Product ID (OLD)856013
Certificates and Declarations
Installation
Mounting TypeSurface mounted
Popular Downloads
Data Sheet, Technical Information9AKK107680A5160
External Classifications and Standards
ETIM 9EC000058 - Empty cabinet
ETIM 10EC000058 - Empty cabinet
eClassV11.0 : 27142408
