View larger
Images are for illustrative purposes only. Please refer to data sheet for details

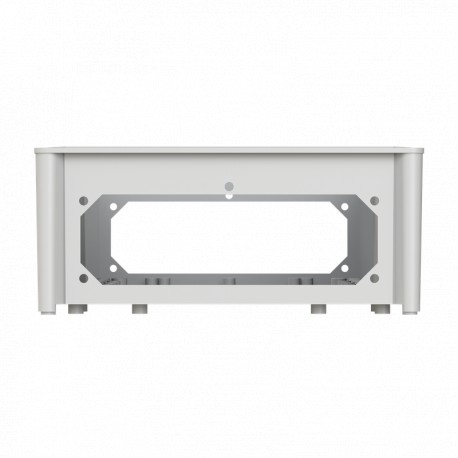

4TBO856012C0100 ABB APO 51 BASE 2 OPEN WALLS
4TBO856012C0100
856012
ABB
1 Pcs.
APO 51 - BASE 2 OPEN WALLS
APO 51 BASE 2 OPEN SIDES RAL7035
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of Flange Openings | 2 |
| Number of Conduit Inlets | 0 |
| Cover Plate Type | Optional |
| Enclosure Type NEMA | Type12 |
| Door Type | Without Door |
| Accessories Available | Yes |
| Impact Resistance Rating | IK08 |
| Design | |
| Surface Finishing | Untreated |
| Housing Material | Plastic |
| RAL Number | RAL 7035 - Light Grey |
| Color | Grey |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | IP67 |
| Protection Class | Isolated (Class II) |
| Dimensions | |
| Product Net Width | 302 mm |
| Product Net Height | 131 mm |
| Product Net Depth / Length | 488 mm |
| Product Net Weight | 2.1 kg |
| Built-In Depth (t2) | 140 mm |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 3 mm | |
| Ordering | |
| Package Level 1 Units | box 2 piece |
| Package Level 1 Gross Weight | 4.4 kg |
| Replaced Product ID (OLD) | 856012 |
| Certificates and Declarations | |
| Installation | |
| Mounting Type | Surface mounted |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000058 - Empty cabinet |
| ETIM 10 | EC000058 - Empty cabinet |
| eClass | V11.0 : 27142408 |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Surface mounted |
| Type of covering (EF000339) | Optional |
| Cover model (EF009212) | None |
| Type of door (EF004464) | None |
| Transparent cover/door (EF006244) | No |
| With lock (EF006306) | No |
| Height (EF000040) | 131 mm |
| Width (EF000008) | 302 mm |
| Depth (EF000049) | 488 mm |
| Built-in depth (EF000218) | 140 mm |
| Inner depth (EF001131) | 120 mm |
| Material plate thickness cabinet (EF009170) | 3.5 mm |
| Material plate thickness door/cover (EF009171) | 3 mm |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Number of openings for flange plates (EF009554) | 2 |
| Extension possible (EF001088) | Yes |
| Number of conduit inlets (EF000437) | 0 |
| Housing material (EF001596) | Plastic |
| Surface protection (EF000139) | Untreated |
| With mounting plate (EF000118) | No |
| Suitable for outdoor use (EF003532) | No |
| Suitable for lightning protection (EF007800) | No |
| Degree of protection (IP) (EF005474) | IP67 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Protection class according to IEC 61140 (EF000004) | II |
| Impact strength (EF004293) | Other |
| Circuit integrity (EF001613) | None |
