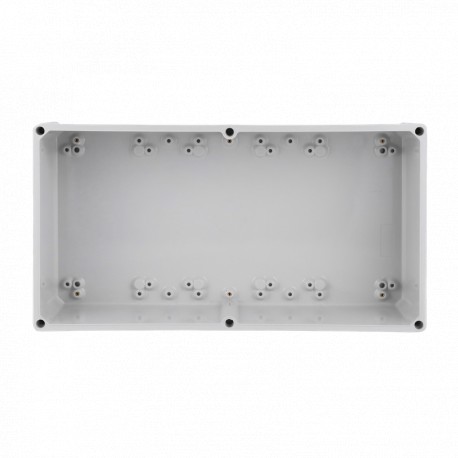

4TBO856005C0100 ABB APO 81 Base RAL7035
4TBO856005C0100
856005
ABB
1 Pcs.
Automation > Empty cabinet
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Acting as a rugged protective housing, the 4TBO856005C0100 ABB APO 81 Base RAL7035 shields delicate electrical components, terminal assemblies, and control gear from harsh operational conditions. Technicians deploy such empty cabinets in industrial settings to create safe, customized junction and distribution points for plant-wide wiring systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Accessories Available: No
- Built-In Depth ( t 2 ): 140 mm
- CAD Dimensional Drawing: 4TBO856005C0100STP
- CN8: 85381000
- Color: Grey
- Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
- Country or Territory of Origin: Poland
- Cover Plate Type: Optional
- Customs Tariff Number: 85381000
- Data Sheet, Technical Information: 9AKK107680A5160
- Degree of Protection: IP67
- Door Type: Without Door
- EAN: 5411815248405
- ETIM 10: EC000058 - Empty cabinet
- ETIM 7: EC000058 - Empty cabinet
- ETIM 8: EC000058 - Empty cabinet
More info
▲| Additional Information | |
|---|---|
| Accessories Available | No |
| Built-In Depth (t2) | 140 mm |
| CAD Dimensional Drawing | 4TBO856005C0100STP |
| CN8 | 85381000 |
| Color | Grey |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| Country or Territory of Origin | Poland |
| Cover Plate Type | Optional |
| Customs Tariff Number | 85381000 |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| Degree of Protection | IP67 |
| Door Type | Without Door |
| EAN | 5411815248405 |
| ETIM 10 | EC000058 - Empty cabinet |
| ETIM 7 | EC000058 - Empty cabinet |
| ETIM 8 | EC000058 - Empty cabinet |
| ETIM 9 | EC000058 - Empty cabinet |
| EU Data Act Applicability and Compliance | Not Applicable |
| Enclosure Type NEMA | Type12 |
| Gross Weight | 2.6 kg |
| Housing Material | Plastic |
| Impact Resistance Rating | IK08 |
| Interior Depth | 120 mm |
| Invoice Description | APO 81 BASE RAL7035 |
| Minimum Order Quantity | BX 2 piece |
| Mounting Type | Surface mounted |
| Number of Conduit Inlets | 0 |
| Package Level 1 Depth / Length | 560 mm |
| Package Level 1 EAN | 5411815248405 |
| Package Level 1 Gross Weight | 5.2 kg |
| Package Level 1 Height | 262 mm |
| Package Level 1 Units | box 2 piece |
| Package Level 1 Width | 305 mm |
| Package Level 3 Depth / Length | 120 mm |
| Package Level 3 Gross Weight | 102.3 kg |
| Package Level 3 Height | 204 mm |
| Package Level 3 Units | box 48 piece |
| Package Level 3 Width | 80 mm |
| Product Main Type | APO |
| Product Name | Bottom part |
| Product Net Depth / Length | 558 mm |
| Product Net Height | 131 mm |
| Product Net Weight | 2.5 kg |
| Product Net Width | 302 mm |
| Protection Class | Isolated (Class II) |
| RAL Number | RAL 7035 - Light Grey |
| REACH Date | 20230911 |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| Replaced Product ID (OLD) | 856005 |
| Selling Unit of Measure | piece |
| Short Description | APO 81 BASE RAL7035 |
| Surface Finishing | Untreated |
| Thickness | Cabinet Plate 3.5 mm |
| Door Plate 3 mm | |
| WEEE Category | Product Not in WEEE Scope |
| eClass | V11.0 : 27142408 |
| Product Keywords | Not Available |
