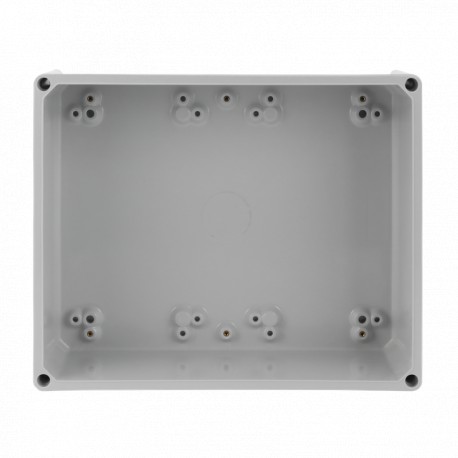

ABB 4TBO856003C0100 4TBO856003C0100 ABB APO 71 Base RAL7035 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

4TBO856003C0100 ABB APO 71 Base RAL7035

4TBO856003C0100

856003

ABB

1 Pcs.

APO 71 Base RAL7035 APO 71 BASE RAL7035

Automation > Empty cabinet
Boxes and cabinets

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 4TBO856003C0100 ABB APO 71 Base RAL7035 is an empty enclosure base designed to serve as the structural foundation for modular electrical distribution setups. Base enclosures allow technicians to build custom junction and control arrangements tailored to specific installation requirements.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Accessories Available: No
  • Built-In Depth ( t 2 ): 120 mm
  • CAD Dimensional Drawing: 4TBO856003C0100STP
  • CN8: 85381000
  • Color: Grey
  • Conflict Minerals Reporting Template (CMRT): 9AKK108468A3363
  • Country or Territory of Origin: Poland
  • Cover Plate Type: Optional
  • Customs Tariff Number: 85381000
  • Data Sheet, Technical Information: 9AKK107680A5160
  • Degree of Protection: IP67
  • Door Type: Without Door
  • EAN: 5411815248382
  • ETIM 10: EC000058 - Empty cabinet
  • ETIM 7: EC000058 - Empty cabinet
  • ETIM 8: EC000058 - Empty cabinet

More info

▲
Additional Information
Accessories AvailableNo
Built-In Depth (t2)120 mm
CAD Dimensional Drawing4TBO856003C0100STP
CN885381000
ColorGrey
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
Country or Territory of OriginPoland
Cover Plate TypeOptional
Customs Tariff Number85381000
Data Sheet, Technical Information9AKK107680A5160
Degree of ProtectionIP67
Door TypeWithout Door
EAN5411815248382
ETIM 10EC000058 - Empty cabinet
ETIM 7EC000058 - Empty cabinet
ETIM 8EC000058 - Empty cabinet
ETIM 9EC000058 - Empty cabinet
EU Data Act Applicability and ComplianceNot Applicable
Enclosure Type NEMAType12
Gross Weight1.9 kg
Housing MaterialPlastic
Impact Resistance RatingIK08
Interior Depth120 mm
Invoice DescriptionAPO 71 BASE RAL7035
Minimum Order QuantityBX 4 piece
Mounting TypeSurface mounted
Number of Conduit Inlets0
Package Level 1 Depth / Length510 mm
Package Level 1 EAN5411815248382
Package Level 1 Gross Weight7.5 kg
Package Level 1 Height310 mm
Package Level 1 Unitsbox 4 piece
Package Level 1 Width380 mm
Package Level 3 Depth / Length120 mm
Package Level 3 Gross Weight148.2 kg
Package Level 3 Height201 mm
Package Level 3 Unitsbox 96 piece
Package Level 3 Width80 mm
Product Main TypeAPO
Product NameAPO 71 Base RAL7035
Product Net Depth / Length372 mm
Product Net Height131 mm
Product Net Weight1.8 kg
Product Net Width302 mm
Protection ClassIsolated (Class II)
RAL NumberRAL 7035 - Light Grey
REACH Date20230911
REACH Declaration9AJK000617
REACH InformationFalse - does not contain substances > 0.1 mass percentage
Replaced Product ID (OLD)856003
Selling Unit of Measurepiece
Short DescriptionAPO 71 BASE RAL7035
Surface FinishingUntreated
ThicknessCabinet Plate 3.5 mm
Door Plate 3 mm
WEEE CategoryProduct Not in WEEE Scope
eClassV11.0 : 27142408
Product KeywordsNot Available
