View larger
Images are for illustrative purposes only. Please refer to data sheet for details

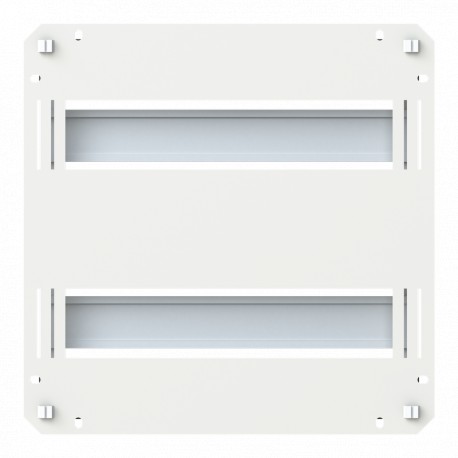

4TBO851338C0100 ABB APO41 modular kit, 125mm axle, 28mod
4TBO851338C0100
851338
ABB
1 Pcs.
APO41 modular kit, 125mm axle, 28mod
FRAME F4 2 DIN-RAILS
Automation > Panel for distribution board
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Number of DIN Rails for Mounting | 2 |
| Number of Modular Spacings per DIN Rail | 28 |
| Cover Plate Type | With notch |
| Accessories Available | No |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 302 mm |
| Product Net Height | 302 mm |
| Product Net Depth / Length | 100 mm |
| Product Net Weight | 0.6 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.6 kg |
| Replaced Product ID (OLD) | 851338 |
| Certificates and Declarations | |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000264 - Panel for distribution board |
| ETIM 10 | EC000264 - Panel for distribution board |
| eClass | V11.0 : 27142411 |
