View larger
Images are for illustrative purposes only. Please refer to data sheet for details

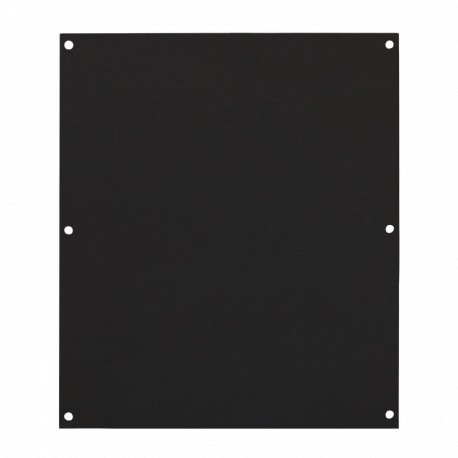

4TBO851181C0100 ABB PERTINAX APO-71 PLATE
4TBO851181C0100
851181
ABB
1 Pcs.
PERTINAX APO-71 PLATE
APO 71 MOUNT.PLATE (PERTINAX)
Automation > Mounting plate for distribution board
Boxes and cabinets
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Technical | |
|---|---|
| Accessories Available | No |
| Design | |
| Surface Finishing | Untreated |
| Material | Plastic |
| Material Compliance | |
| REACH Declaration | 9AJK000617 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230911 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 254 mm |
| Product Net Height | 298 mm |
| Product Net Depth / Length | 5 mm |
| Product Net Weight | 0.6 kg |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 0.7 kg |
| Replaced Product ID (OLD) | 851181 |
| Certificates and Declarations | |
| Installation | |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107680A5160 |
| External Classifications and Standards | |
| ETIM 9 | EC000213 - Mounting plate for distribution board |
| ETIM 10 | EC000213 - Mounting plate for distribution board |
| eClass | V11.0 : 27400639 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 298 mm |
| Width (EF000008) | 254 mm |
| Material (EF002169) | Plastic |
| Surface protection (EF000139) | Untreated |
| Perforated (EF000115) | No |
